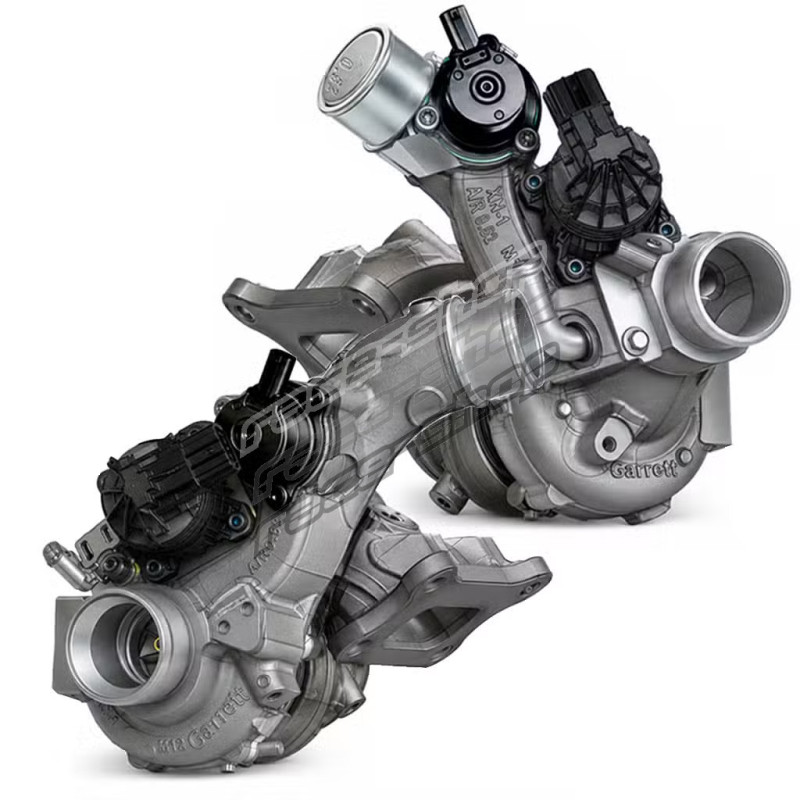

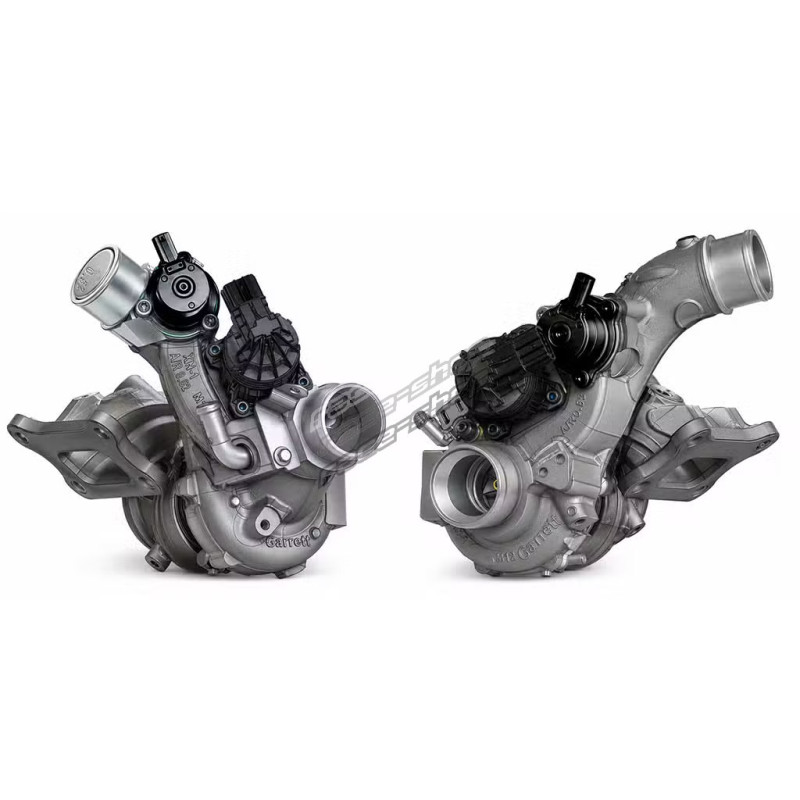

Garrett 959782-5001S PowerMax Twin Turbocharger Kit for Nissan Z RZ34 3.0L (22+)

Performance-enhanced twin turbocharger kit — a direct-fit Garrett PowerMax upgrade for the Nissan Z / Fairlady Z RZ34 equipped with the 3.0L VR30DDTT twin-turbo V6 engine.

The Garrett PowerMax turbocharger kit replaces the original Garrett units while retaining the factory mounting points and connections. The upgraded compressor design provides increased airflow and greater power capability without requiring fabrication for installation.

Both turbochargers are supplied as a complete matched kit with calibrated electronic actuators, allowing straightforward integration with the factory engine layout while retaining OEM-style durability and reliability.

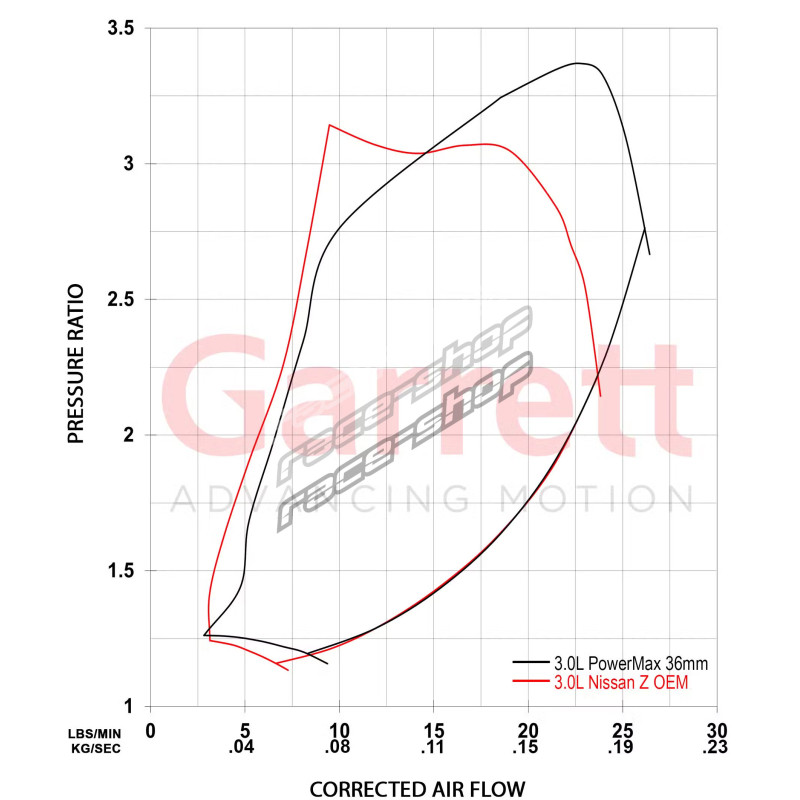

Compared with the original turbochargers, the PowerMax units provide approximately 12% greater compressor airflow and support up to 560 BHP / 412 kW. ECU calibration is required to fully utilise the increased airflow and performance capability.

Specifications

• Vehicle: Nissan Z / Fairlady Z RZ34 3.0L VR30DDTT Twin-Turbo V6
• Supported power: up to 560 BHP / 412 kW
• Compressor flow increase: +12% compared with OEM
• Turbocharger model: MGT1446Z
• Compressor inducer: 36 mm
• Compressor exducer: 46 mm
• Turbine inducer: 39 mm
• Turbine exducer: 36 mm
• Actuator: electronic
• Wastegate: internal
• Fitment: direct-fit, no fabrication required

Fits & compatible parts

• Nissan Fairlady Z RZ34: 2022+ Japan
• Nissan Z RZ34: 2023+ North America
• Nissan Z RZ34: 2023+ Australia & New Zealand
• Nissan Z / Fairlady Z RZ34: 2023+ EMEA imported vehicles
• Kit part number: 959782-5001S
• LH turbocharger: 955654-5001S
• RH turbocharger: 955655-5001S

Features

• Supports up to 560 BHP / 412 kW
• Approximately 12% increased compressor airflow compared with the OEM turbochargers
• Direct-fit bolt-on design using the original mounting points and connections
• Complete matched LH and RH turbocharger kit
• Calibrated electronic actuators for straightforward installation and integration
• Improved airflow, power potential and throttle response
• Engineered to OEM-level standards for durability, reliability and long-term performance
• No fabrication required for installation

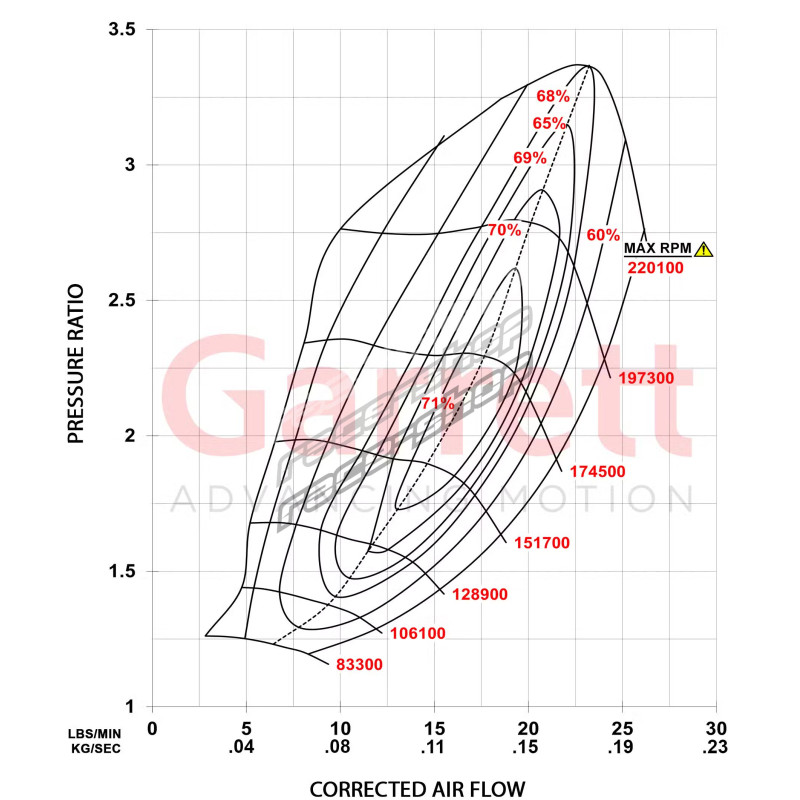

The maximum specified turbocharger speed is 220,100 RPM. Operation above this speed may result in turbocharger damage or premature failure.
