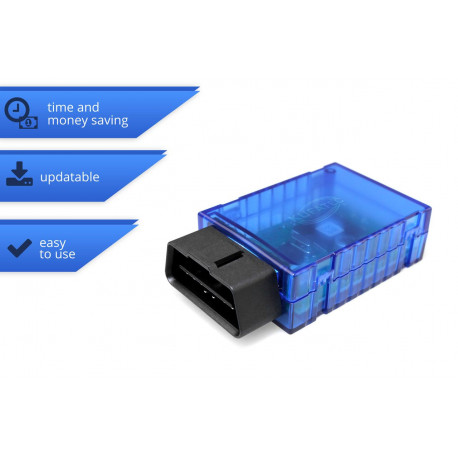

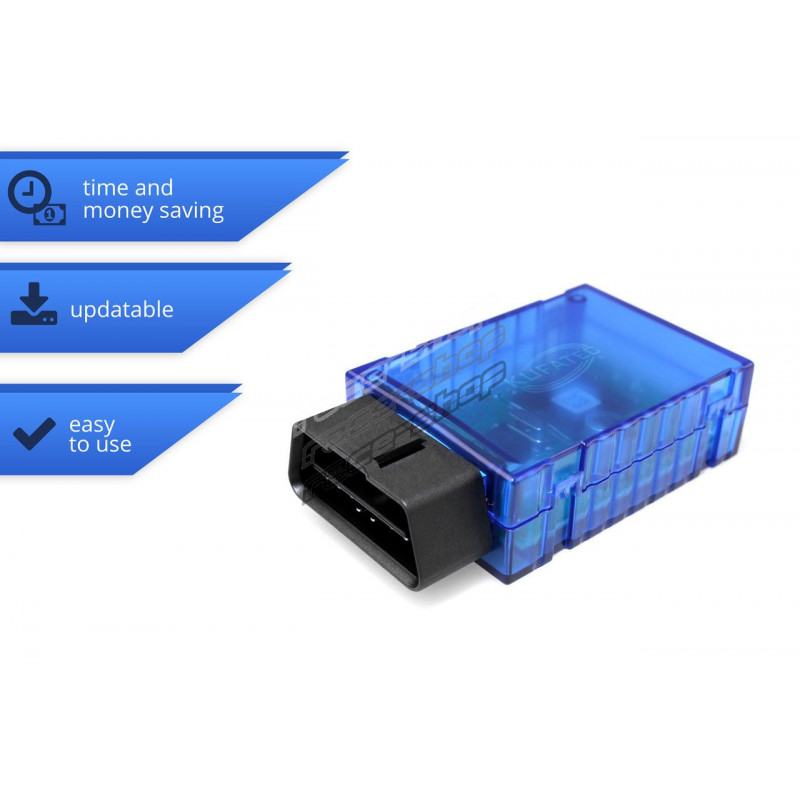

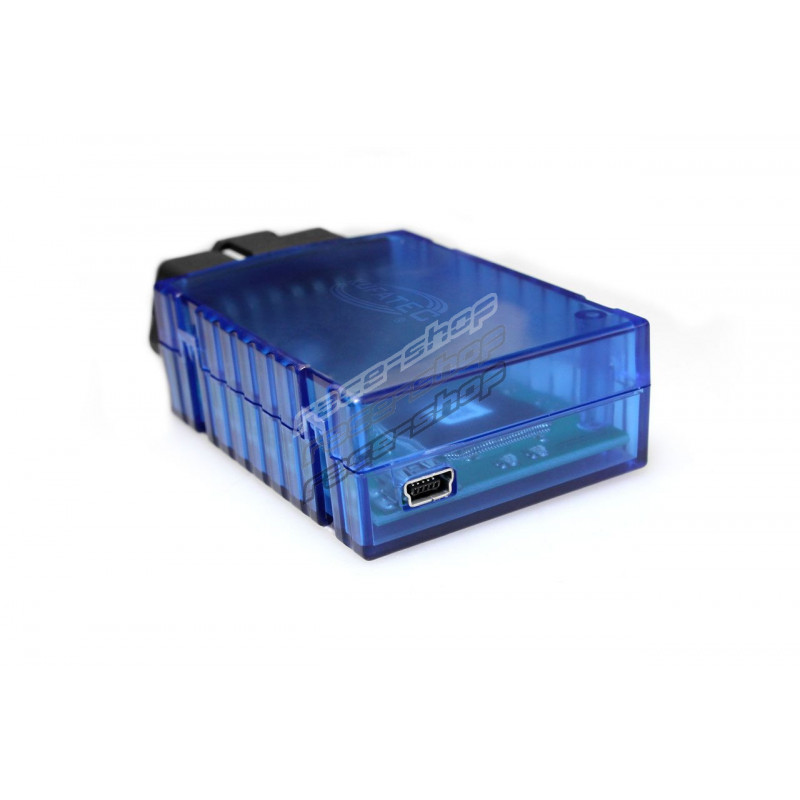

Coding dongle parameterisation LED headligths for Audi Q3 F3

• OBD interface for commissioning / coding or parameterisation of the LED headlight control units
• suitable for the following vehicles:
• Audi A1 GB
• Audi Q3 F3
• Simply connect the adapter to the OBD interface of the vehicle - done!
• The interface adapts the retrofit fully automatically to the existing vehicle coding.
• Suitable for the following models:
• Audi Q3 F3 with control parts 4K0941572CC (address D6, D7), LED high or 4K0941591BC (address D6, D7) LED high matrix

Scope of delivery:

• 1x coding dongle for OBD

Note:

• to be used only in connection with the retrofitting of the corresponding automatic headlamp levelling system (aLWR)
• Please read out the part numbers of addresses 29, 39, D6 and D7 by diagnosis and compare part numbers.

• The light switch must be in the OFF position during parameterisation.
• the coding adapter can only be used for one vehicle
• other vehicles and part numbers on request

Suitable for:

Make: Audi

Model: Q3 - F3

Estimated installation time: -
