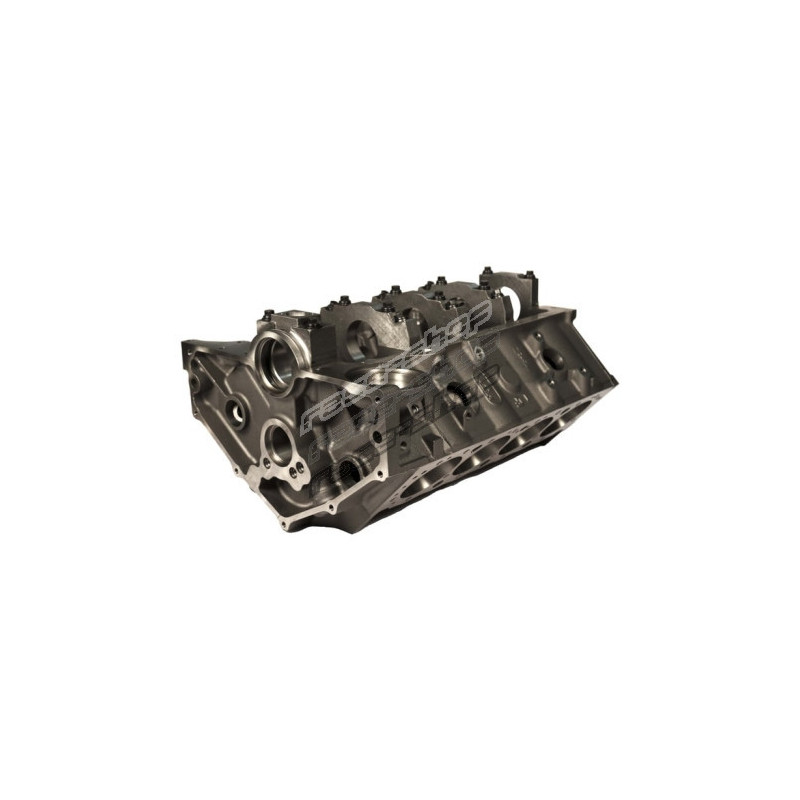

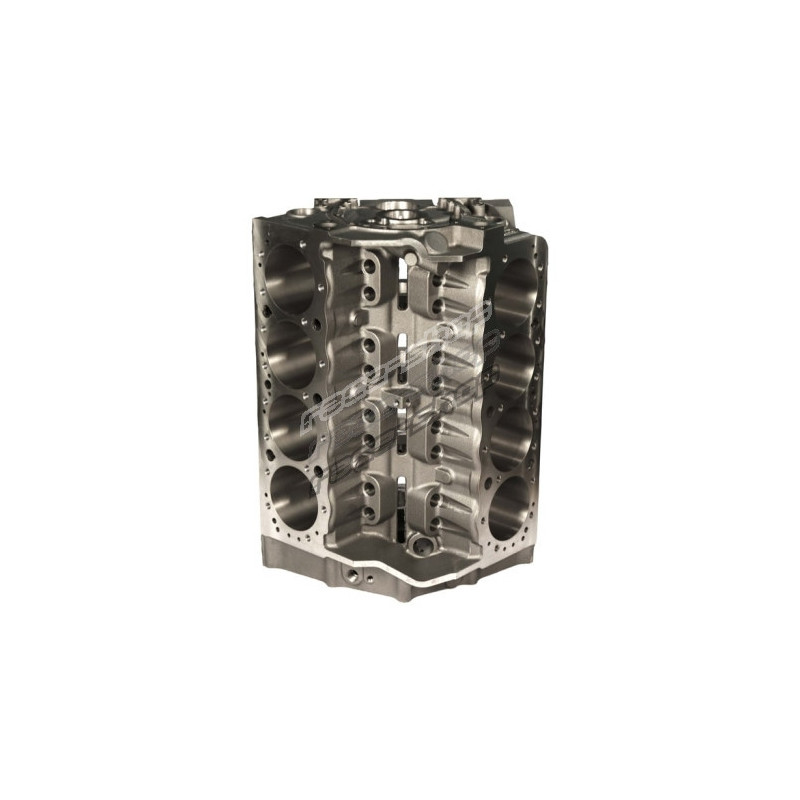

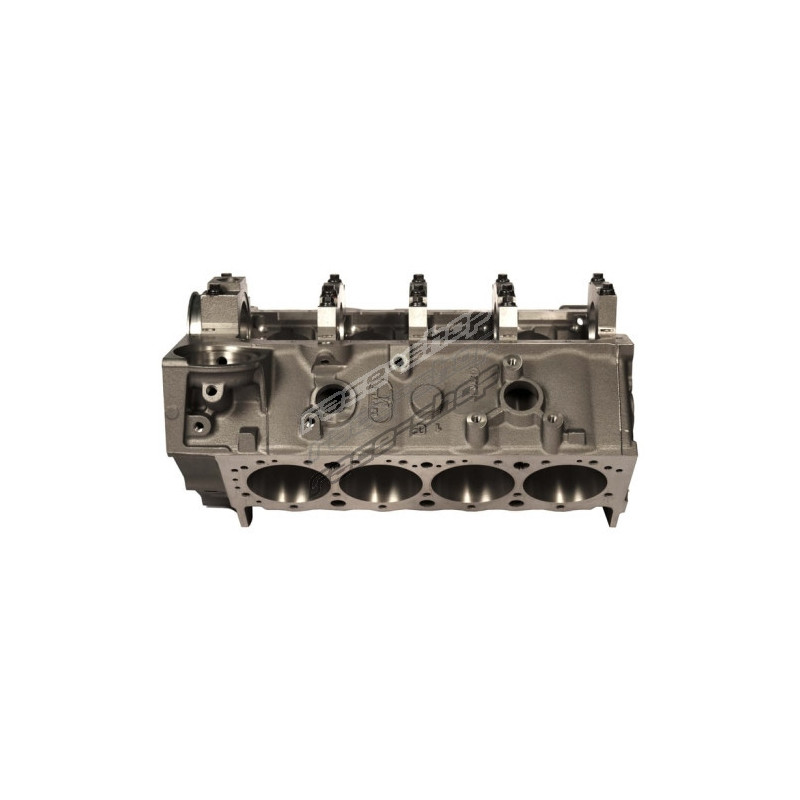

DART 31191211 Little M2 Chevy Small Block Iron Block – 4.125" Bore, 9.025" Deck

Dart’s Little M Sportsman block is the affordable alternative for Sportsman racers and serious street performance. The Sportsman block shares most of the Little M’s best features, but saves you money by using Ductile Iron main bearing caps (4-bolt on the center three and 2-bolt on the ends), and employing a rear external oil feed, crossover and restrictor provision.
Uses standard small block parts, including cam, timing chain, oil pump, oil pan, oil filter, motor mounts, mechanical fuel pump, and clutch linkage; Priority main oiling system feeds the main bearings first; Siamese cylinder bores with extra thick walLS2 resist cracking and improve ring seal for more power (minimum .275” thick with 4.185” bore); Scalloped water jacket walLS2 improve flow around cylinders for better cooling; Open lifter valley improves oil return to pan; Enlarged lifter bosses accommodate offset and oversize lifters; Blind head bolt holes don’t go through to water jacket; Splayed outer bolts on middle main bearing caps; Rear external oil feed, crossover and restrictor provision; Parts kit sold separately

• Industry: Automotive
• Camshaft Location: Standard
• Cylinder Bore Diameter: 4.125 IN
• Deck Height: 9.025 IN
• Engine Block Weight: 197-205 LBS
• Freeze Plug Type: Press Fit
• Camshaft Lifter Bore: 0.842 IN
• Main Bearing Type: Chevrolet 350
• Main Cap Type: Ductile
• Material: 220 BHN Cast Iron
• Rear Main Seal Type: 2-Piece
• Product Type: Engine Block
• Engine Block Material: 220 BHN Cast Iron
• Make - Web: Chevrolet
• Engine - Web: Small Block
• Emissions Code: 3
