Rear performance brake pads Rotinger HP, 1PD19589HP

ROTINGER HP brake pads are a technically advanced solution, designed for the highest level of safety and durability in all conditions. They are the perfect complement to the ROTINGER brake disc range.

Key features and technologies:

• Innovative Break-in Layer: The pads feature an additional friction layer that significantly shortens the break-in process. Thanks to this technology, the pads operate optimally from the moment of installation, which directly translates into your safety.
• Eco-Friendly Friction Compound: The improved compound guarantees exceptional braking efficiency right from the start, even with cold discs. Moreover, it is free of asbestos, lead, and Cr6+ chromium.
• Additional Wear Indicators: In addition to standard electronic or acoustic sensors, ROTINGER HP pads are equipped with extra, visible wear indicators. This allows the user full control over the pad condition.
• New Generation Anti-Vibration SHIM Pads: The pads feature advanced SHIM anti-vibration pads that stabilize the pad in the caliper and eliminate unwanted micro-vibrations, ensuring a quiet and comfortable ride.
• Complete with Mounting Accessories: ROTINGER HP pads are delivered with a full mounting kit, making installation easier and compliant with vehicle manufacturers’

Product Specification:

• Designed to meet the highest quality standards.
• Compatible with original equipment (OEM) pads.
• Asbestos-free, lead-free and Cr6+ free.
• Exceptional long service life.
• Comply with all official quality and safety regulations in accordance with the European ECE R90 standards.

Dimensions:

• Height: 51,90mm
• Height 2: -mm
• Width: 123,30mm
• Width 2: -mm
• Thickness: 16,50mm
• Thickness 2: -mm
• Weight: 1,04kg

Technical information:

This package contains 1 set of brake pads for rear axle.

• Axle: Rear
• Brake system: Continental
• WVA Number: 24137

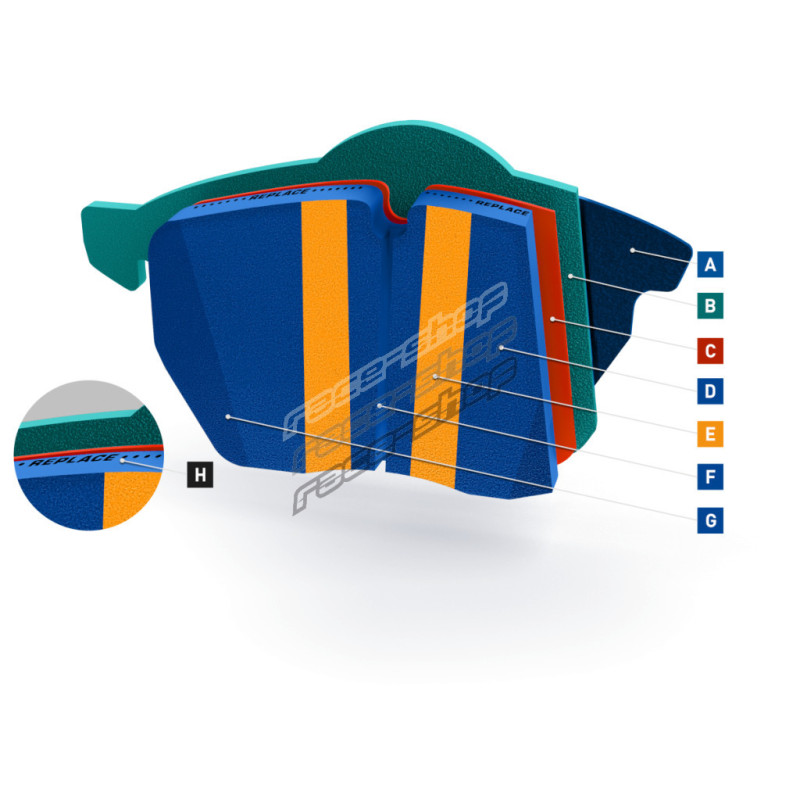

Pad composition (Image legend):

• A: Shim – Anti-squeal Pad: its main task is to dampen vibrations and eliminate noise during braking.
• B: Backing Plate: a solid, perfectly fitted, one-piece steel plate covered with a special anti-corrosion lacquer, providing support and proper positioning in the brake caliper.
• C: Underlayer: provides thermal and mechanical insulation, improves vibration damping, and strengthens the connection between the friction material and the backing plate.
• D: Friction Material: individually selected for the vehicle type; eco-friendly; the number of components reaches up to 25; designed for long service life and optimal cooperation with ROTINGER discs; 100% asbestos and copper-free formula.
• E: Break-in Layer: a thin, top coating of friction material with a special composition; it accelerates the process of fitting the pad to the disc; ensures optimal braking effectiveness right from the first few kilometers.
• F: Grooves: drains dust, gases, and water from the friction surface and reduces stress in the friction material; increases braking efficiency.
• G: Chamfers: improves the contact of the brake pads; reduces noise during braking; prevents vibrations during braking.
• H: Wear Indicator: allows for a quick assessment of the brake pad’s wear level.

Application:

In order to verify the suitability of this product with your vehicle, please check the "Application" tab.

Cross-references:

TRW: GDB1621; GDB2033; GDB2086
Delphi: LP1958
Textar: 2413701; 2413703; 2413716705; 2413781; 2521201; 2521281
OEM: 16 478 760 80; 16 478 941 80; 4254 05; 1233679; 1324300; 1360254; 1360304; 1360306; 1459016; 1512872; 1566096; 1647894180; 1683374; 1753860; 1763677; 1765765; 1805813; 1809259; 1809458; 1820122; 2 177 229; 2039739; 2T1J2M008AA; 3M512M008AA; 3M512M008AB; 3M512M008AC; 3M5J2M008A1A; 3M5J2M008AA; 4387374; 5040319; 5134101; AV612M008AA; AV612M008AB; AV612M008BA; BV612M007BA; BV612M007CB; CV6Z2200A; ME2T1J2M008AA; ME2T1J2M008AB; ME3M5J2M008AA; MEAV6J2M008AA; MEAV6J2M008BA; MEAV6J2M008CA; 5W932200AA; 5W932200AB; C2C27271; C2D23143; C2D48654; C2P17595; C2P26112; C2Z22083; BP4K-26-980A; BP4K-26-980B; BP4K-26-990A; BP4K-26-990B; BPYK2648Z; BPYK2648ZA; BPYK2648ZA9C; BPYK2648ZB; C2Y32648Z; C2Y32648ZA; C2Y32648ZA9A; C2Y32648ZB; 12799240; 13322091; 16 05 065; 16 05 117; 16 05 196; 16 05 200; 16 05 993; 16050650; 1647894180; 93172190; 93176116; 93183140; 93190338; 93192623; 44 06 000 02R; 44 06 016 89R; 77 01 207 996; 7701207767; 86 71 016 711; 8660004480; 12799240; 13322091; 32017848; 93166942; 93183140; 93190338; 13322091; 93172190; 93176116; 93183140; 93190338; 93192623; 1647894180; 30736610; 31323501; 31341324; 31341327; 31341331; 13322091; 93190338; 30742031; 31341331
