TA-Technix airride kit with air management for Volvo C70 I Coupe (N)

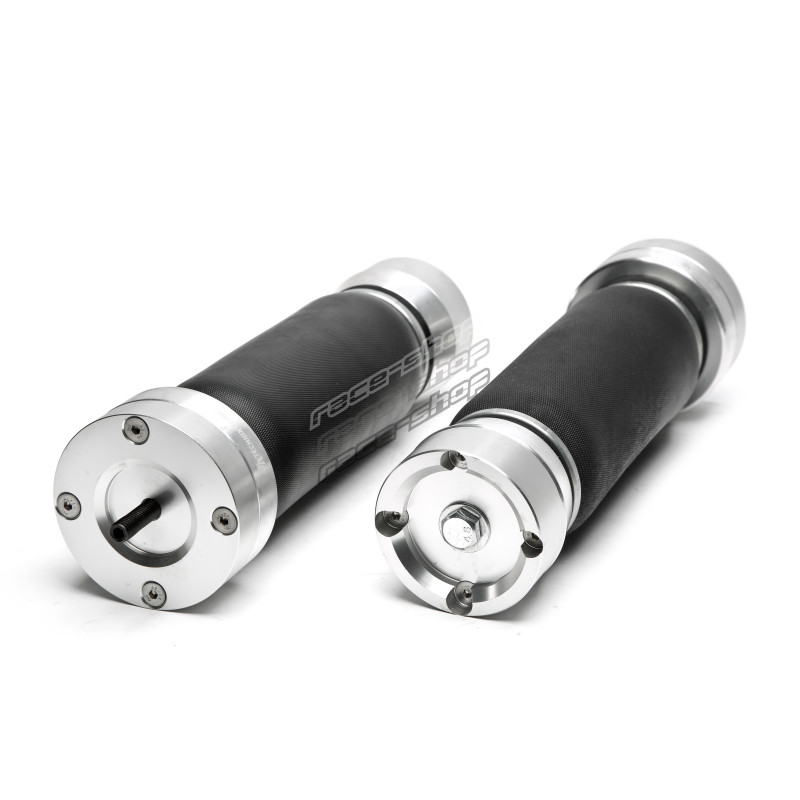

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below the minimum pressure triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in black
- 19 litre tank in black
- Electronic set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
not for models with level control
Volvo C70 I Coupe, model N, year of construction 1997 - 2002
Volvo C70 I Convertible, Type N, Year of manufacture 1998 -2005
Volvo S70, Type LS, excl. AWD models, Year of manufacture 1997 - 2000
Volvo V70 I, type LV, excl. AWD models, year of construction 1996 - 03.2000
Volvo 850 Sedan, Type LS, Year of manufacture 1991 - 1997
Volvo 850 estate, type LW, excl. AWD models, year of construction 1992 - 1997
maximum front axle load: 1120kg
maximum rear axle load: 1120kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

-

Axle:

-

KeyType number:

2851,2852,2853,3981,3982,4737,4738,4826,5390,5392,5703,5704,5705,5706,7250,7251,7252,7253,7254,7255,7256,7257,7258,7259,7261,7262,7372,7373,7374,7375,7376,7377,7922,7924,7925,7926,7982,7984,7985,7986,8424,8425,8426,8427,9507,9508,9509,9510,10419,10420,11062,11063,11064,11065,12530,14440,14441,14728,15570,16175,16176,17615,17616,18317,18331,22618,27878,28764
