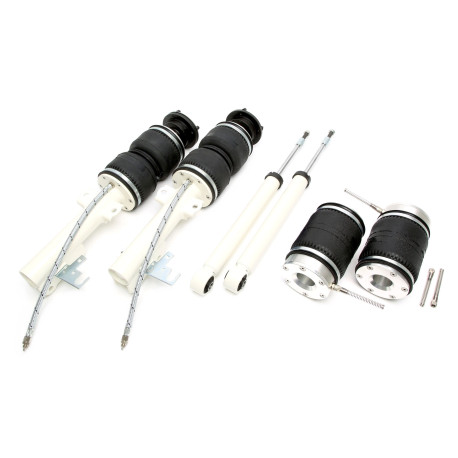

TA-Technix airride kit with air management for Opel Insignia Type A - 0-GA

TA Technix Air Damper Kit + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in black
- 11,5 litre tank in black
- Electronics set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 metre 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
not for OPC + 4x4 models
year of construction 2008 - 2017
maximum front axle load: 1180kg
maximum rear axle load: 1080kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

Loading points of the cathedral bearings must be drilled using the template included with the kit

Axle:

-

KeyType number:

29930,109270,24303,28220,20739,28219,59257,28218,115678,115679,105642,28216,28215,31120,59252,10450,13732,109273,26831,28227,20737,28226,59256,28225,115682,115681,105643,28223,28222,30962,59253,28221,10451
