TA-Technix airride kit with air management for Mercedes-Benz E-Klasse W211

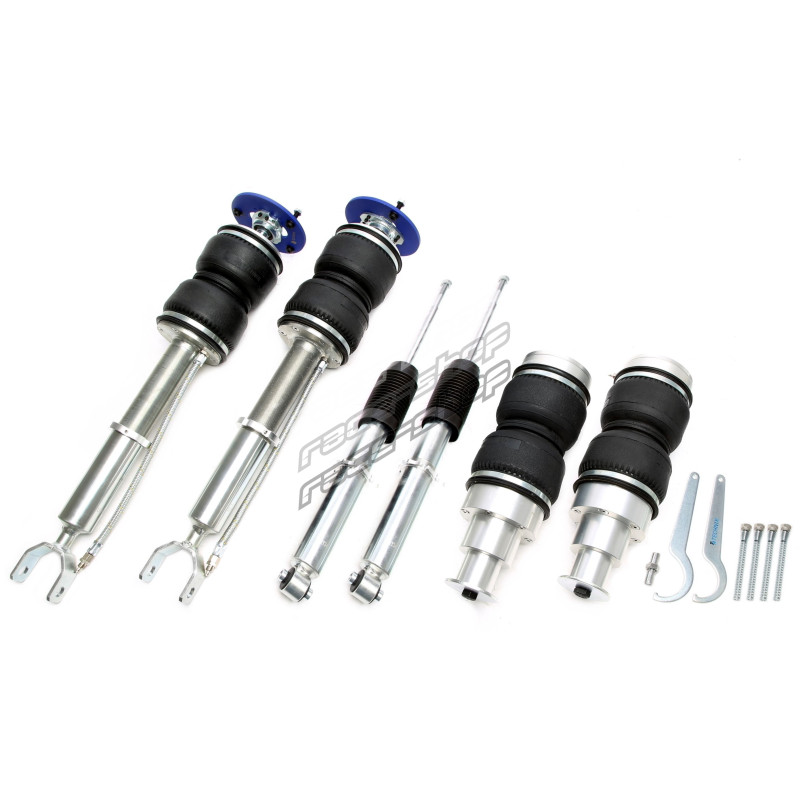

TA Technix Air Damper Kit + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

The following additional functions, among others, can be used with the aid of the enclosed operating instructions and the simple menu navigation:

- 4 driving heights
- Adjustment of the ride height with ignition on and off (Autolevel)
- Axle-by-axle adjustment of the bellows pressure for optimum adjustment of the ride height
- protection against foreign use (offers the possibility to lock the system within 3 seconds to the desired driving height)
- maximum as well as minimum tank pressure (adjustable)
- protection of the on-board power supply by fixable upper and lower limits of the on-board voltage
- freely configurable valve times
- Change of the control unit illumination / ECU illumination
- minimum pressure of the front - as well as rear axle (a falling below triggers an optical warning signal and is necessary for the TÜV registration)

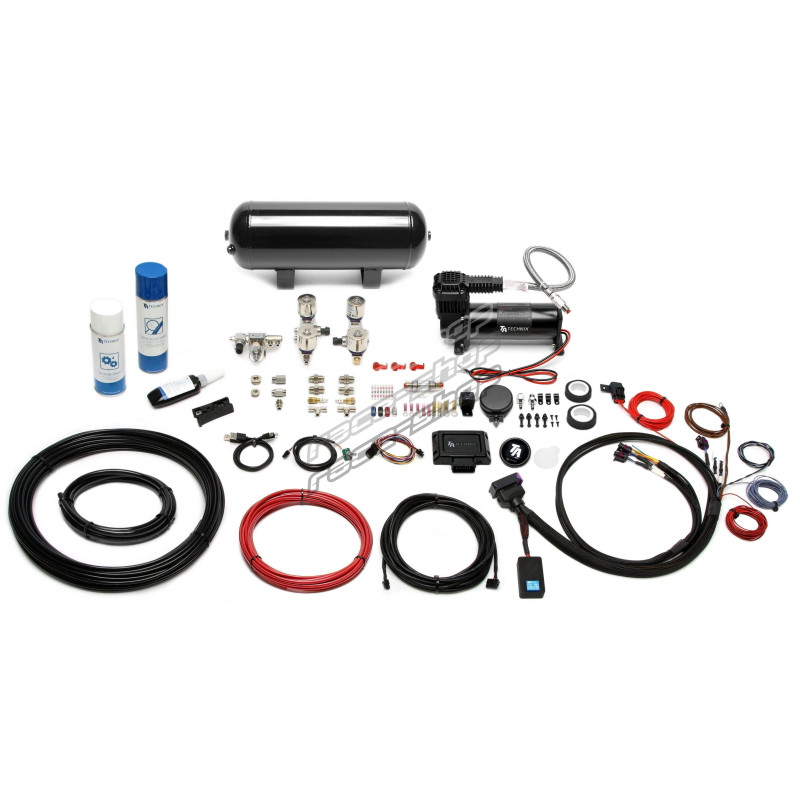

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- assembled wiring harness
- control unit / ECU
- 3 update cables
- TA Technix 444C supercharger in black
- 11,5 litre tank in black
- Electronic set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Mercedes Benz E-Class
Sedan, Type W211
year of construction 2002 - 2008
not for models with 4-Matic + level control + AMG
maximum front axle load: 1045kg
maximum rear axle load: : 1145kg

Approval:

Including parts report (§19.3)

Implementation notes:

Not for models with 4-Matic + level control + AMG

Notes:

-

Axle:

-

KeyType number:

11236,16564,16565,16593,16594,16595,16991,16992,17128,17129,17170,17964,18058,18630,18631,18632,18633,19263,19777,19778,19789,19795,23283,23473,23477,25505,30872,54937
