TA-Technix airride kit with air management for Smart Crossblade Typ 450

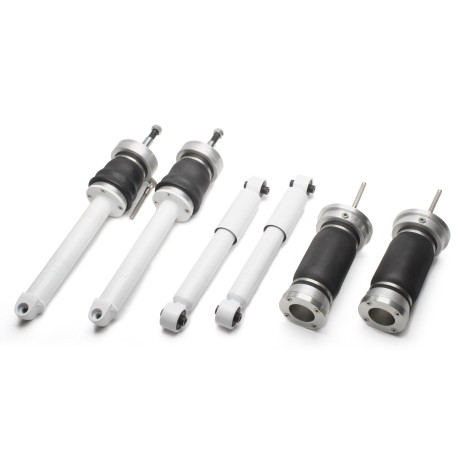

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below the minimum pressure triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in black
- 19 litre tank in black
- Electronic set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
MCC Smart Cabrio, - City Coupe, type 450, year of construction 12.2000 - 2007
Crossblade, type 450, year of construction 2002 - 2003
Smart Roadster, - Coupe, type 452, year of construction 2003 - 2005
Smart Fortwo Coupe, - Cabrio, model 450, year of construction 2004 - 2007
maximum front axle load 450 kg
maximum rear axle load 660 kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

Not suitable for models with VA = leaf suspension

Axle:

-

KeyType number:

8978,9339,12180,14661,15668,15669,15670,16616,17106,17107,17197,17198,17199,17200,17201,17202,17563,17564,18006,18007,18142,18143,18144,18145,18146,18147,18148,23279,27992,32236,55959,56185,117047
