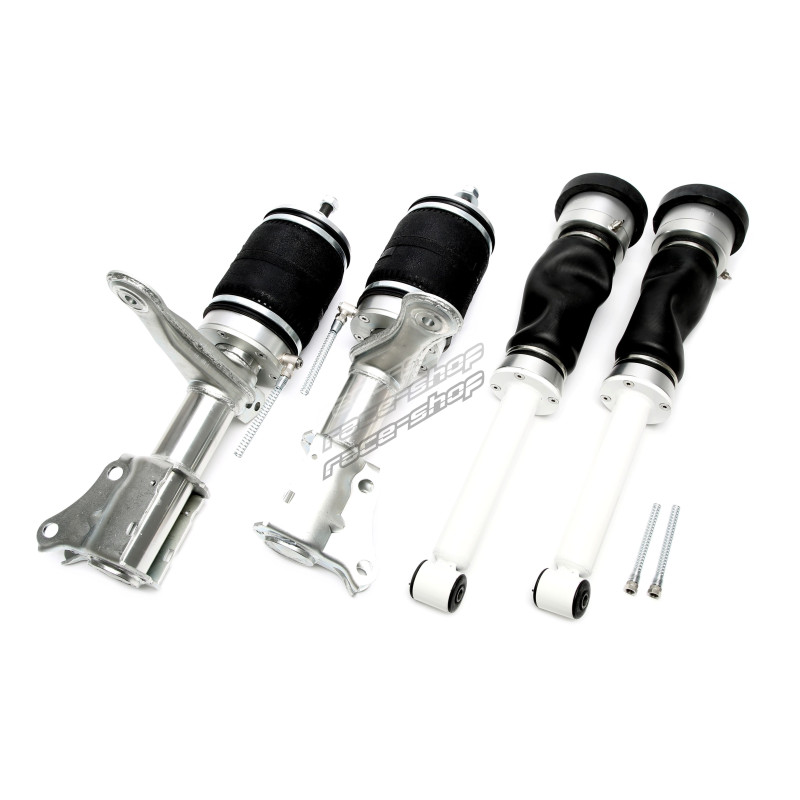

TA-Technix airride kit with air management for Audi 80 (Type 89)

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in black
- 11,5 litre tank in black
- Electronic set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 metre 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Audi Coupe, Type 89, 8B
models with M14 on wheel carrier
without Quattro
year of construction 1989 - 1996

Audi 80, Type 89, 8A, B3
Models with M14 on wheel carrier
without Quattro
Year of construction 1986 -1991

Audi 90, Type 89, 8A, B3
Models with M14 on wheel carrier
without Quattro
year of construction 1987 -1991
maximum front axle load: 1100kg
maximum rear axle load: 870kg

Approval:

Including parts report (§19.3)

Implementation notes:

Excluding Quattro and cabriolet models

Notes:

Not suitable for Quattro models

Axle:

-

KeyType number:

1111,1113,1115,1116,1117,1119,1121,1123,1124,1125,1131,1361,1362,1365,1366,1368,1369,1370,1479,1481,1482,1492,4666,5059,5065,5067,5831,11910,12969,14140,17635,18108,18109,18446,18447
