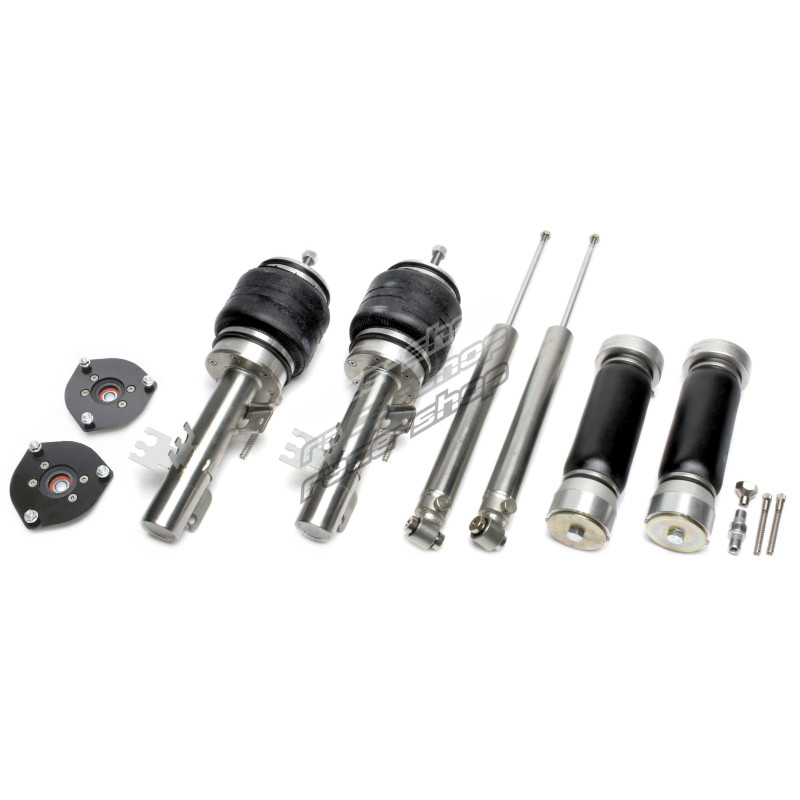

TA-Technix hardness adjustable air suspension kit for Skoda Fabia II Typ 5J

TA Technix air damper set + TA Technix air generation kit for air suspension / airride

TA Technix hardness adjustable air damper set
incl. lowering - strut mount set

TA Technix air generation kit for air suspension / airride
380 Viair compressor
11,5 litre black tank
Viair dual pressure gauge in black
25 meter 6mm PU hose in black
Hose cutter
4 x 2/2 way valves 1/4
Warning buzzer and LED
Normally closed and normally open pressure switch
Electronic set incl. 3 switches, flat plug sleeves, cable, cable ties and relay
all fittings incl. check valve and safety valve
2 x emergency filling valves
Safety valve
Water separator
Leak detection spray
Silicone spray
Thread sealant

suitable for:
Audi A2 Type 8Z, Year of construction 2000 - 08.2005
not 1.2 TDI engine code ANY
Seat Ibiza III, model 6L, year of construction 2002 - 2009
Skoda Fabia, model 6Y, year of construction 1999 - 2007
Skoda Fabia II, model 5J, year of manufacture 2007 - 2014
VW Fox, Type 5Z, Year of manufacture 2005 - 2008
VW Polo, model 9N, year of manufacture 2001 - 2012
Note: Only for models with 3-point domalger attachment
maximum front axle load: 960kg
maximum rear axle load: 840kg

Approval:

Including parts report (§19.3)

Implementation notes:

VA = hardness adjustment - infinitely variable using the adjustment wheel from above,
HA = via adjustment knob on the damper body (compression + rebound at the same time)

Notes:

Front-wheel drive models only
We recommend using shorter coupling rods, e.g. E.g. EVOPE003

Axle:

-

KeyType number:

13360,13359,17626,16679,16523,30937,20053,16524,16809,23128,17079,19219,19220,17924,20057,17298,17836,16810,16525,16526,18243,20846,14277,16944,17393,13363,15106,13362,15107,17519,19225,19226,13364,14278,17456,15586,17395,19270,15503,17321,15582,15583,19905,17518,19229,19230,15504,15584,15585,18608,34981,18609,22590,27559,31043,16521,23205,16332,23207,16300,16552,19697,16732,16279,18599,18605,19698,10414,19253,16333,16105,17742, 22950,33315,33314,33679,22949,22948,33876,22947,33681,22946,33243,33311,22945,9409,22944,23170,33317,33316,33680,23169,23168,33877,23167,33682,23166,33244,33312,23165,9410,28175,
