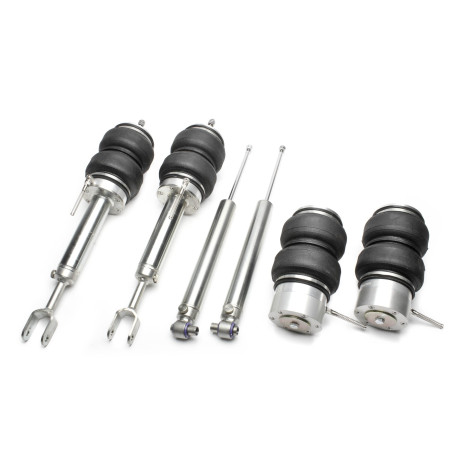

TA-Technix hardness adjustable air suspension kit for Audi A4 Typ 8E B6 B7

TA Technix air damper set + TA Technix air generation kit for air suspension / airride

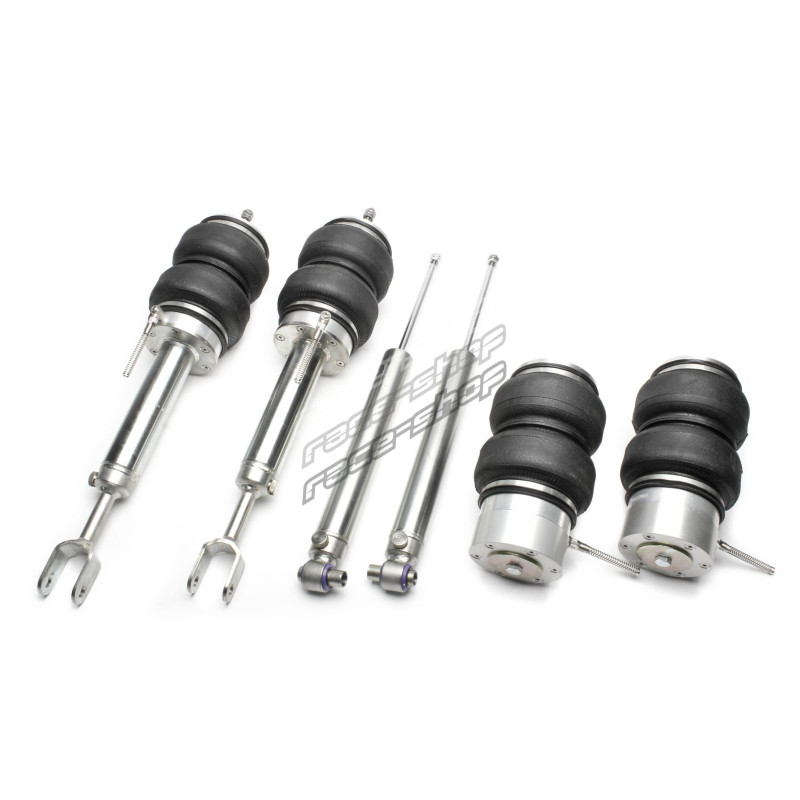

TA Technix hardness adjustable air damper set

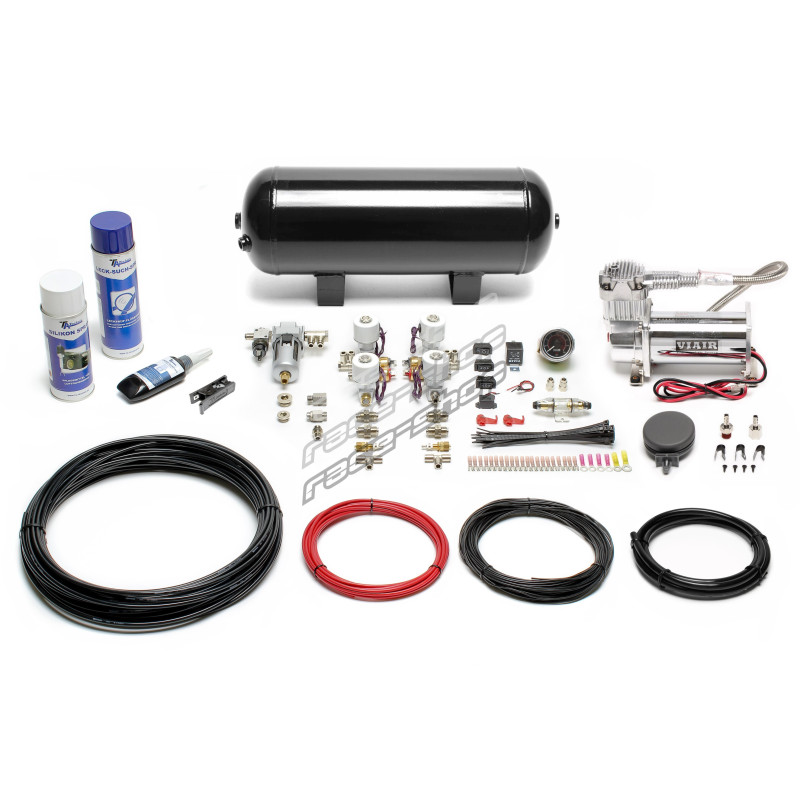

TA Technix air generation kit for air suspension / airride
380 Viair compressor
11,5 litre black tank
Viair dual pressure gauge in black
25 meter 6mm PU hose in black
Hose cutter
4 x 2/2 way valves 1/4
Warning buzzer and LED
Normally closed and normally open pressure switch
Electronic set incl. 3 switches, flat plug sleeves, cable, cable ties and relay
all fittings incl. check valve and safety valve
2 x emergency filling valves
Safety valve
Water separator
Leak detection spray
Silicone spray
Thread sealant

suitable for:
Audi A4, -Avant excl. Quattro, type 8E, year of construction 2000 - 2008
Audi A4 Cabriolet excl. Quattro, model 8H, year of manufacture 2002 - 2009
Seat Exeo, model 3R, year of construction 009 - 2013
maximum front axle load: 1230kg
maximum rear axle load: 1150kg

Approval:

Including parts report (§19.3)

Implementation notes:

Hardness adjustment:
VA + HA using an adjustment knob on the lower part of the damper body (compression + rebound at the same time)

Notes:

-

Axle:

-

KeyType number:

15506,15507,15509,15511,15754,16018,16043,16044,16046,16047,16049,16261,16318,16319,16323,16324,16339,16596,16601,16861,16880,16882,16883,16885,16931,16983,16984,16985,17142,17146,17148,18225,18226,18362,18365,18368,18371,18373,18375,18376,18396,18398,18399,18400,18402,18403,18404,18405,18407,18409,18411,18412,18413,18678,18938,19169,19171,19487,19488,19745,19825,19842,19844,19846,19847,19849,19970,19971,20910,20911,25095,26547,26548,26553,26555,27315,28017,28165,28568,29978,30997,30998,30999,31000,31001,31347,31348,31349,31350,31351,31352,31588,34806,34809,34810,34811,34814,34818,57213
