*366 946

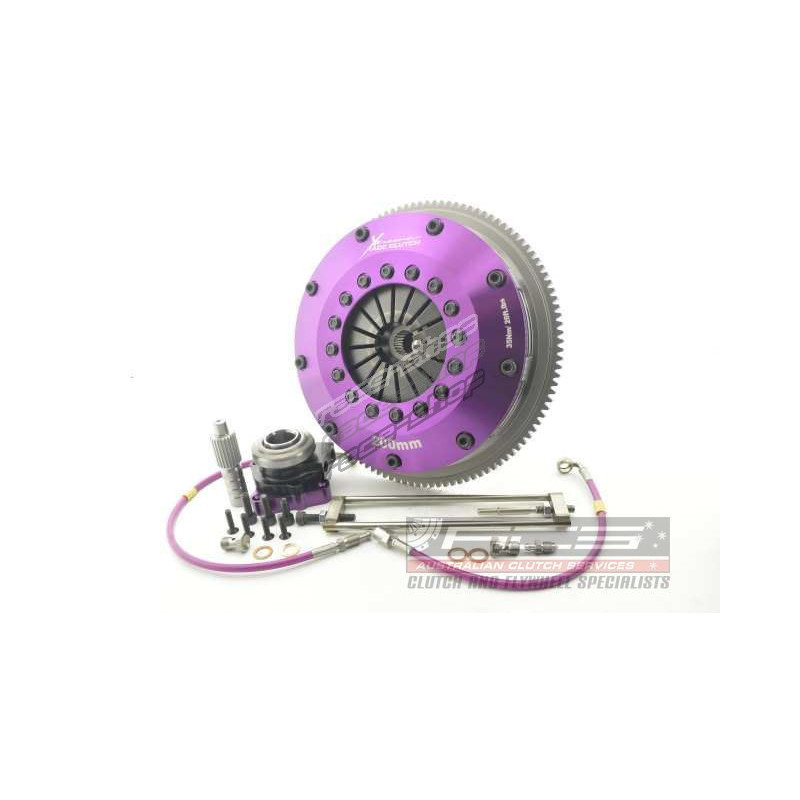

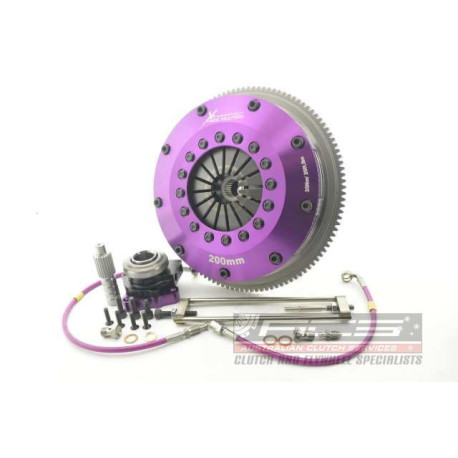

KMI20682-2B Xtreme Performance 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1200Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Nuovo prodotto
KMI20682-2B
9337467005042
Accessori
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Motorsport 200mm twin plateThe Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.
The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Tech. Info:
Reference: KMI20682-2B
Weight: 14.96
Note:
Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 26
Torque (Nm): 1200
Flywheel Step: +2.2mm
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load:
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:
200mm Twin Plate
Suitable for:
- Mitsubishi/Lancer/EVO VIII - 260 (CT9A)/2004.03-2005.07/4G63 Turbo 1997 Petrol 195 kW 265 BHP (2004.03 - 2005.07)
Mitsubishi/Lancer/EVO VII (CT9A)/2001.01-2003.01/4G63 Turbo 1997 Petrol 200 kW 272 BHP (2001.01 - 2003.01)
Mitsubishi/Lancer/EVO IV (CN9A)/1996.08-1997.12/4G63 Turbo 1997 Petrol 206 kW 280 BHP (1996.08 - 1997.12)
Mitsubishi/Lancer/EVO V (CP9A. CT9A)/1998.01-1998.12/4G63 Turbo 1997 Petrol 206 kW 280 BHP (1998.01 - 1998.12)
Mitsubishi/Lancer/EVO VII (CT9A)/2001.01-2003.01/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2001.01 - 2003.01)
Mitsubishi/Lancer/EVO VIII (CT9A)/2003.04-2005.03/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2003.04 - 2005.03)
Mitsubishi/Lancer/EVO IX (CT9A)/2005.01-2007.09/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2005.01 - 2007.09)
Mitsubishi/Lancer/EVO IX (CT9A)/2005.08-2006.09/4G63 Turbo 1997 Petrol 213 kW 290 BHP (2005.08 - 2006.09)
Mitsubishi/Lancer/EVO VIII - FQ-300 (CT9A)/2003.04-2004.04/4G63 Turbo 1997 Petrol 225 kW 305 BHP (2003.04 - 2004.04)
Mitsubishi/Lancer/EVO VIII - FQ-300 (CT9A)/2003.04-2004.04/4G63 Turbo 1997 Petrol 227 kW 309 BHP (2003.04 - 2004.04)
Mitsubishi/Lancer/EVO IX - FQ-300 (CT9A)/2005.06-2006.12/4G63 Turbo 1997 Petrol 227 kW 309 BHP (2005.06 - 2006.12)
Mitsubishi/Lancer/EVO VIII - FQ-320 (CT9A)/2004.04-2006.08/4G63 Turbo 1997 Petrol 243 kW 331 BHP (2004.04 - 2006.08)
Mitsubishi/Lancer/EVO VIII - FQ-330 (CT9A)/2003.10-2006.08/4G63 Turbo 1997 Petrol 246 kW 335 BHP (2003.10 - 2006.08)
Mitsubishi/Lancer/EVO VIII - FQ-340 (CT9A)/2004.04-2005.03/4G63 Turbo 1997 Petrol 255 kW 347 BHP (2004.04 - 2005.03)
Mitsubishi/Lancer/EVO IX - FQ-340 (CT9A)/2005.06-2007.12/4G63 Turbo 1997 Petrol 257 kW 350 BHP (2005.06 - 2007.12)
Mitsubishi/Lancer/EVO IX - FQ-360 (CT9A)/2006.07-2007.12/4G63 Turbo 1997 Petrol 273 kW 371 BHP (2006.07 - 2007.12)
Mitsubishi/Lancer/EVO VIII - FQ-400 (CT9A)/2004.10-2006.08/4G63 Turbo 1997 Petrol 302 kW 411 BHP (2004.10 - 2006.08)
Mitsubishi/Lancer/EVO V - RS450 Ralliart (CP9A)/1998.01-1998.06/4G63 Turbo 1997 Petrol 336 kW 456 BHP (1998.01 - 1998.06) ,
- Scrivi una recensione
Non hai trovato la tua domanda?
Inserire nuova domanda Hai una domanda? Cerca una risposta.
| Marchio | Modello | Type | Codice motore |
|---|---|---|---|
| Mitsubishi | Lancer | EVO IV (CN9A) | 4G63 Turbo 1997 Petrol 206 kW 280 BHP (1996.08 - 1997.12) |
| Mitsubishi | Lancer | EVO IX (CT9A) | 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2005.01 - 2007.09) |
| Mitsubishi | Lancer | EVO IX (CT9A) | 4G63 Turbo 1997 Petrol 213 kW 290 BHP (2005.08 - 2006.09) |
| Mitsubishi | Lancer | EVO IX - FQ-300 (CT9A) | 4G63 Turbo 1997 Petrol 227 kW 309 BHP (2005.06 - 2006.12) |
| Mitsubishi | Lancer | EVO IX - FQ-340 (CT9A) | 4G63 Turbo 1997 Petrol 257 kW 350 BHP (2005.06 - 2007.12) |
| Mitsubishi | Lancer | EVO IX - FQ-360 (CT9A) | 4G63 Turbo 1997 Petrol 273 kW 371 BHP (2006.07 - 2007.12) |
| Mitsubishi | Lancer | EVO V (CP9A. CT9A) | 4G63 Turbo 1997 Petrol 206 kW 280 BHP (1998.01 - 1998.12) |
| Mitsubishi | Lancer | EVO V - RS450 Ralliart (CP9A) | 4G63 Turbo 1997 Petrol 336 kW 456 BHP (1998.01 - 1998.06) |
| Mitsubishi | Lancer | EVO VII (CT9A) | 4G63 Turbo 1997 Petrol 200 kW 272 BHP (2001.01 - 2003.01) |
| Mitsubishi | Lancer | EVO VII (CT9A) | 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2001.01 - 2003.01) |
| Mitsubishi | Lancer | EVO VIII (CT9A) | 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2003.04 - 2005.03) |
| Mitsubishi | Lancer | EVO VIII - 260 (CT9A) | 4G63 Turbo 1997 Petrol 195 kW 265 BHP (2004.03 - 2005.07) |
| Mitsubishi | Lancer | EVO VIII - FQ-300 (CT9A) | 4G63 Turbo 1997 Petrol 225 kW 305 BHP (2003.04 - 2004.04) |
| Mitsubishi | Lancer | EVO VIII - FQ-300 (CT9A) | 4G63 Turbo 1997 Petrol 227 kW 309 BHP (2003.04 - 2004.04) |
| Mitsubishi | Lancer | EVO VIII - FQ-320 (CT9A) | 4G63 Turbo 1997 Petrol 243 kW 331 BHP (2004.04 - 2006.08) |
| Mitsubishi | Lancer | EVO VIII - FQ-330 (CT9A) | 4G63 Turbo 1997 Petrol 246 kW 335 BHP (2003.10 - 2006.08) |
| Mitsubishi | Lancer | EVO VIII - FQ-340 (CT9A) | 4G63 Turbo 1997 Petrol 255 kW 347 BHP (2004.04 - 2005.03) |
| Mitsubishi | Lancer | EVO VIII - FQ-400 (CT9A) | 4G63 Turbo 1997 Petrol 302 kW 411 BHP (2004.10 - 2006.08) |
