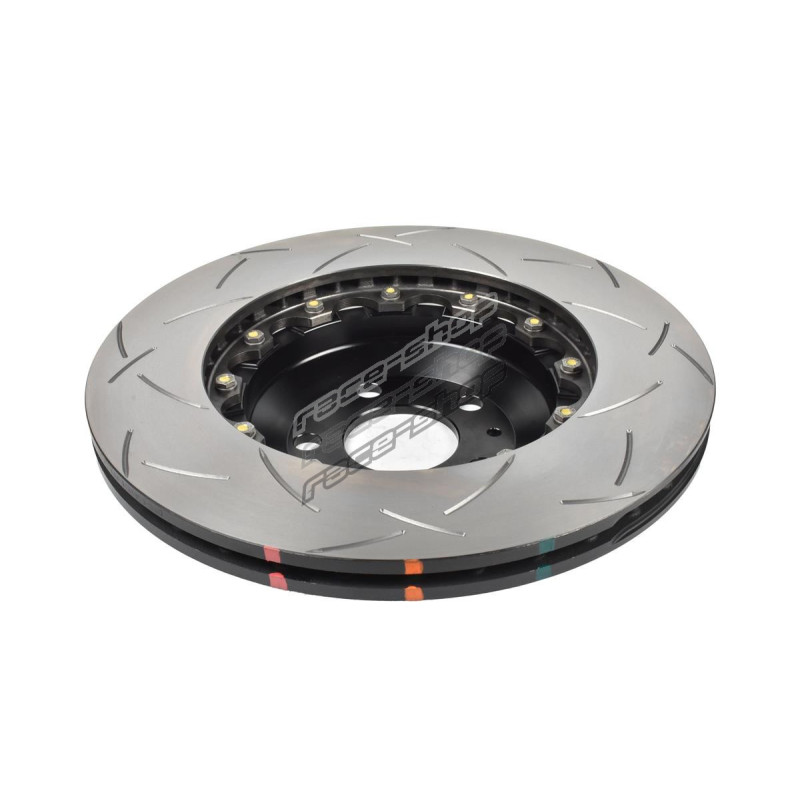

DBA 5000 series T3 DBA53942BLKS (2 pcs)

T3 Slot – 48 Precision CNC-Machined Slots

Feature: Tri-symmetrical curve slots dampen vibration harmonics and noise

Advantage: A quieter, more responsive, and smoother brake pedal feel

Feature: Increased number of out-gassing exit points for brake pad gases

Advantage: Improves consistency and effectiveness of every brake stop

Feature: Universal slot design

Advantage: Eliminates the need for left and right disc versions

Kangaroo Paw – 144 Diamond and Tear Drop Pillar Ventilation System

Feature: Increased surface area for better heat dissipation

Advantage: Minimizes brake fade and increases braking effectiveness

Benefit: Prolongs the life of both pads and rotors, and reduces mechanical wear and associated maintenance costs

XG150 High Carbon Alloyed Iron

Feature: Enhanced thermal capacity allows the rotor to handle extreme heat over long periods

Advantage: Minimizes warping and cracking

Benefit: Extends rotor lifespan and maintains consistent performance under stress

Thermal Stability Profiling (TSP)

Feature: Special rotor formulation engineered to support DBA’s TSP process

Advantage: Enhances structural integrity under repeated thermal load

Benefit: Reduces the risk of warping and cracking, extending service life

Thermographic Temperature Monitoring (TTM)

Feature: Heat-sensitive paint markings that change color at specific temperature thresholds

Advantage: Gives drivers a clear visual indication of peak braking temperatures

Feature: Permanent color change when thresholds are exceeded

Benefit: Enables monitoring of rotor fatigue, supports replacement planning, and assists resellers with warranty verification

Paint Protection on Non-Friction Areas

Feature: Special coating on non-contact rotor surfaces

Advantage: Reduces corrosion and prevents rust formation

Benefit: Enhances product appearance and adds long-term value

Technical information:

Disc Vent: Kangaroo Paw
Diameter [mm]: 355
Height [mm]: 63,1
Thickness [mm]: 25
Minimum Thickness [mm]: 23
Inner Diameter [mm]: 70
Number of Holes: 5
Stage: Stage 5
Tech Bulletins: Bedding-In Brakes | Motorsport Information
Replacement Rotor: DBA53942.1S
Axle: Front

Suitable for:

N/A
