TA-Technix airride kit with air management for Volkswagen Golf VI Typ 1K

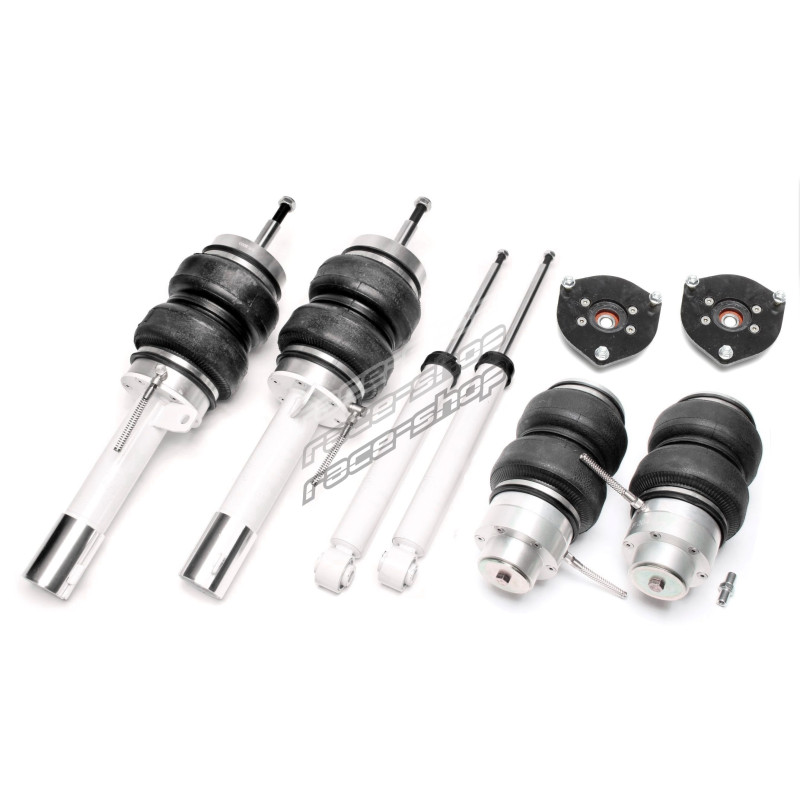

TA Technix Air Damper Kit + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in black
- 19 litre tank in black
- Electronic set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Volkswagen Golf VI, - Variant, - Cabriolet, Type 1K
year of construction 2008 - 2013
excl. 4-WD models
50mm and 55mm shock absorber
maximum rear axle load: 1220kg
maximum front axle load: 1190kg
maximum rear axle load: 1220kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

Excluding all-wheel drive models
We recommend using shorter coupling rods, e.g. E.g. EVOPE003

Axle:

-

KeyType number:

4535,6055,8207,8208,8209,8210,8211,8212,9621,10431,10524,11973,24942,28480,29990,29991,29992,29993,29994,29995,30969,30970,30971,31340,32063,32585,32586,32589,32601,32606,32609,32625,33030,33031,34793,34795,34879,53583,58748,58749,59290,115171,115173,115175
