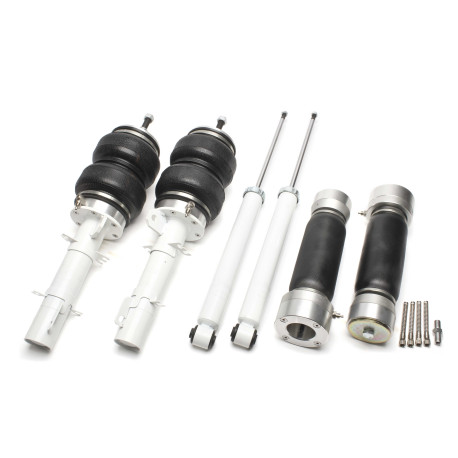

TA-Technix airride kit with air management for Audi A3 Typ 8L

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the ride height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in chrome
- 19 litre chrome tank
- Electronics set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Audi A3 excl. Quattro, S3, type 8L, year of construction 1996 - 2003
Audi TT excl. Quattro, type 8N, year of construction 1998- 2006
Seat Leon, excl. Cupra 4, T4, Syncro, type 1M, year of construction 1999 - 2006
Seat Toledo II, model 1M, year of manufacture 1998 - 2006
Skoda Octavia I, -station wagon, excl. 4x4, type 1U, year of construction 1998 - 2010
Volkswagen Bora, - estate excl. 4-motion, type 1J, year of construction 1998 - 2005
Volkswagen Golf IV, - Estate excl. 4-motion, model 1J, year of construction 1997 - 2006
Volkswagen New Beetle, - convertible, excl. RSI, type 9C,1C,1Y, year of construction 1998 - 2010
maximum front axle load: 1030kg
maximum rear axle load: 1070kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

Coupling rods EVOPE001 are recommended

Axle:

-

KeyType number:

5600,5601,5602,5603,7378,7907,7908,7909,8009,8456,8460,8461,8704,8798,8799,8800,8801,8802,8979,8980,9063,9515,9516,9517,9518,9519,10000,10001,10002,10003,10004,10046,10047,10048,10049,10050,10174,10175,10176,10270,11340,11346,11599,11603,11604,11605,11606,11607,11629,11760,11761,11762,11763,11779,12046,12103,12104,13085,13086,13100,13104,13159,13160,13161,13162,14238,14268,14413,14414,14559,14563,14571,14590,14591,14676,14677,14748,15011,15012,15112,15292,15458,15460,15462,15464,15466,15468,15539,15540,15542,15544,15545,15548,15629,15631,15632,15640,15725,15802,15899,15910,15916,15917,15918,16063,16065,16067,16069,16071,16180,16253,16340,16348,16349,16509,16510,16511,16512,16700,17046,17073,17074,17122,17132,17285,17475,17476,17478,17514,17515,17921,17926,18011,19224,19237,19238,19761,19765,19791,20556,23268,23291,23865,23866,24250,25146,25151,27256,27288,27896,28330,28538,28545,31114,17143,18942,9901,18944,18945,11342,19239,15656
