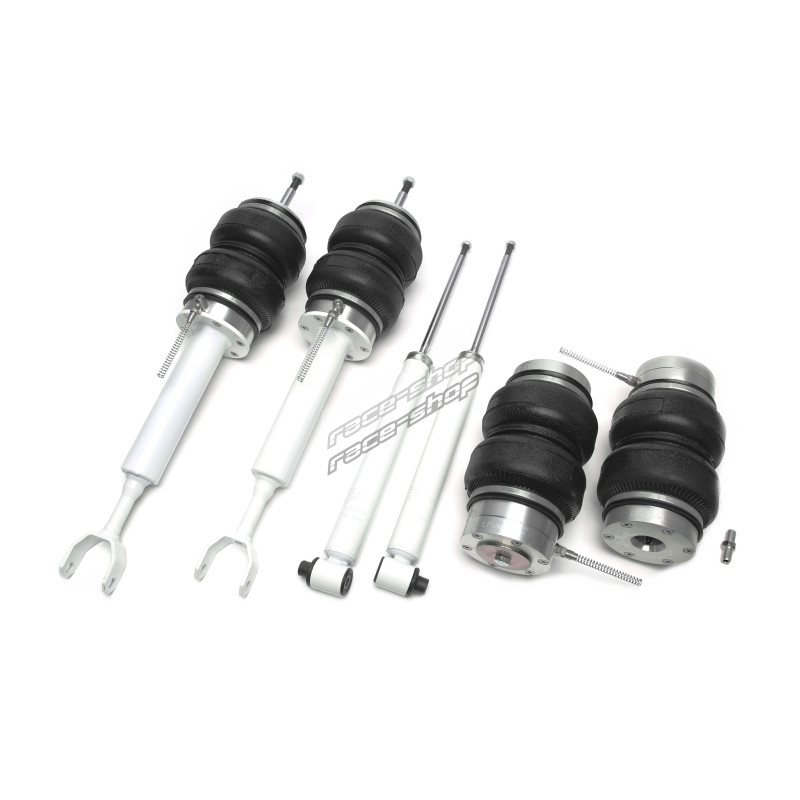

TA-Technix airride kit with air management for Audi A6 Typ 4B C5

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the ride height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below the minimum pressure triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C supercharger in chrome
- 11.5 litre chrome tank
- Electronics set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 metre 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Audi A6, -Avant, type 4B,C5, year of construction 1997 - 2005
Skoda Superb, model 3U, year of construction 2001 - 2008
Volkswagen Passat, - Variant, model 3B/3BG, year of construction 1997 - 2005
excl. Quattro + 4motion models
maximum front axle load: 1250kg
maximum rear axle load: 1245kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

Excluding Quattro/4motion models

Axle:

-

KeyType number:

5724,5725,5726,5727,5729,5730,7741,7932,7934,7935,7936,7937,7939,7941,8316,8318,8319,8320,8818,8939,8940,8942,8943,8944,8947,8965,8967,10055,10056,10178,10179,10728,10729,10940,11361,11363,13019,14585,14587,15414,15415,15416,15417,15418,15419,15420,15421,15422,15423,15531,15532,15534,15536,15609,15610,15661,15662,15664,15665,15883,15888,16003,16004,16008,16010,16011,16012,16014,16016,16184,16291,16292,16293,16294,16295,16296,16298,16299,16301,16346,16347,16709,17008,17231,17232,17406,17407,17873,17874,18005,20003,23293,23294
