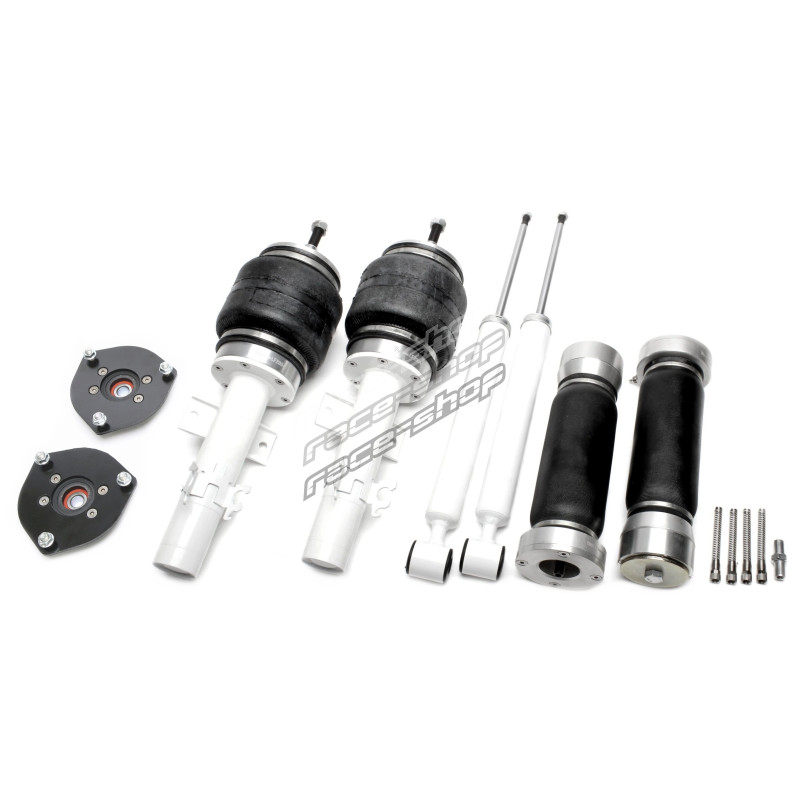

TA-Technix airride kit with air management for Audi A2 Typ 8Z

TA Technix Air Damper Kit + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the ride height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in black
- 19 litre tank in black
- Electronic set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Audi A2 Type 8Z, Year of construction 2000 - 08.2005
not 1.2 TDI engine code ANY
Seat Ibiza III, model 6L, year of construction 2002 - 2009
Skoda Fabia, model 6Y, year of construction 1999 - 2007
Skoda Fabia II, model 5J, year of manufacture 2007 - 2014
VW Fox, Type 5Z, Year of manufacture 2005 - 2008
VW Polo, model 9N, year of manufacture 2001 - 2012
maximum front axle load: 960kg
maximum rear axle load: 840kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

Front-wheel drive models
We recommend using shorter coupling rods, e.g. E.g. EVOPE003

Axle:

-

KeyType number:

13360,13359,17626,16679,16523,30937,20053,16524,16809,23128,17079,19219,19220,17924,20057,17298,17836,16810,16525,16526,18243,20846,14277,16944,17393,13363,15106,13362,15107,17519,19225,19226,13364,14278,17456,15586,17395,19270,15503,17321,15582,15583,19905,17518,19229,19230,15504,15584,15585,18608,34981,18609,22590,27559,31043,16521,23205,16332,23207,16300,16552,19697,16732,16279,18599,18605,19698,10414,19253,16333,16105,17742, 22950,33315,33314,33679,22949,22948,33876,22947,33681,22946,33243,33311,22945,9409,22944,23170,33317,33316,33680,23169,23168,33877,23167,33682,23166,33244,33312,23165,9410,28175,
