TA-Technix airride kit with air management for Seat Altea XL 4x4 Typ 5P

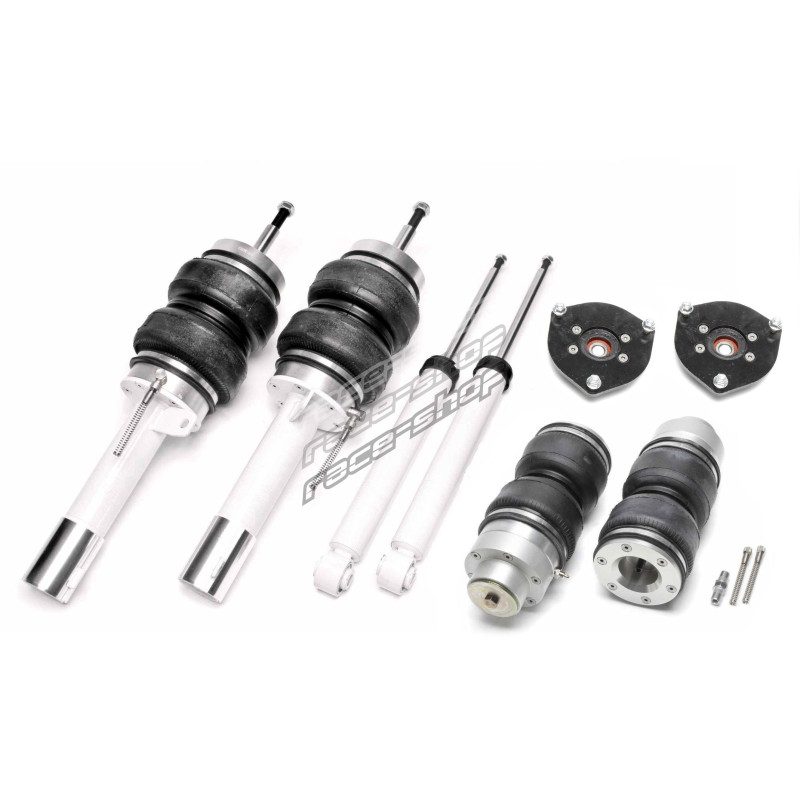

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the ride height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in chrome
- 19 litre chrome tank
- Electronics set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Audi A3, -Sportback Quattro, type 8P, year of construction 2003 - 2013
Seat Altea XL 4x4, model 5P, year of manufacture 2004 - 2015
Skoda Octavia II estate 4x4, type 1Z, year of construction 2004 -2013
Volkswagen Golf V, - Variant 4motion, Type 1K_, Year of manufacture 2003 - 2009
Volkswagen Golf VI, - Variant 4motion, Type 1K_, Year of manufacture 2008 - 2013
Volkswagen Passat, - Variant, Passat CC, -CC 4motion, Type 3C incl. B7, Year of manufacture 2005 -2016
50mm and 55mm suspension struts
maximum front axle load: 1190kg
maximum rear axle load: 1230kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

We recommend using shorter coupling rods, e.g. E.g. EVOPE003

Axle:

-

KeyType number:

295,314,357,359,4819,5013,5420,6042,6800,7027,7033,9623,17577,18070,18083,18356,18359,18360,18384,18385,18386,18480,18481,18710,18921,19485,19486,19615,19617,19630,19631,19632,19703,19821,19914,19958,19960,19962,19967,19969,22532,24242,24243,24492,26608,26739,27562,28169,28171,30738,30739,31594,31974,31992,32612,32626,32792,33406,34858,56903,56904,58415,59367,59387,59396,
