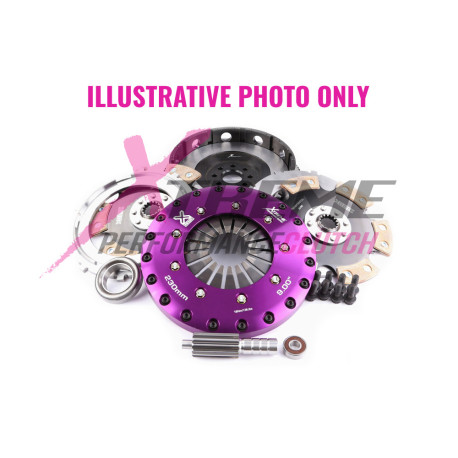

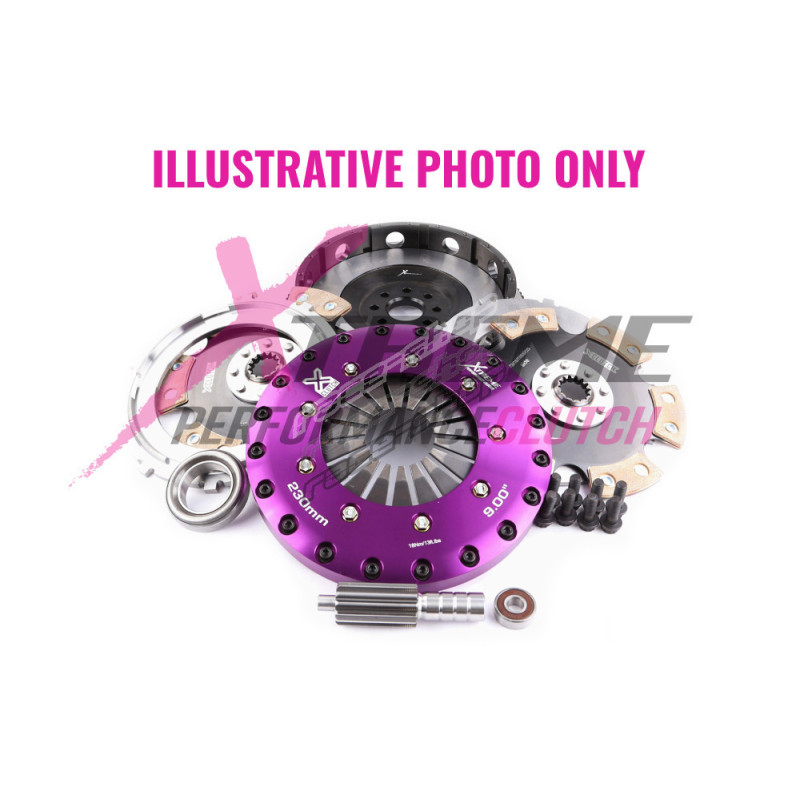

KGM23589-2E Xtreme Performance 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Nuovo prodotto
Temporaneamente non disponibile
2.086,50 € iva incl.
Purtroppo il prodotto non è temporaneamente disponibile. Per favore, scegline un altro.
Per informazioni automatiche sulla disponibilità dei prodotti,
clicca su "Avvisami quando sono disponibili".
clicca su "Avvisami quando sono disponibili".
KGM23589-2E
9337467234961
Accessori
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Clutch 230mm twin plate kitThe Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.
The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Tech. Info:
Reference: KGM23589-2E
Weight:
Note:
Clutch Disc Diameter (mm): 230
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 26
Torque (Nm): 1830
Flywheel Step:
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load:
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:
230mm Twin Plate
Suitable for:
- Holden/H Series/VS | 5.0i V8/1995.08-1997.06/50LB9 4987 Petrol 165 kW 224 BHP (1995.08 - 1997.06)
Holden/H Series/5.0 i V8/1995.04-1999.06/50LB9 4987 Petrol 168 kW 228 BHP (1995.04 - 1999.06)
Holden/H Series/VS | 5.0i V8/1995.04-1999.06/50LB9 4987 Petrol 168 kW 228 BHP (1995.04 - 1999.06)
Holden/H Series/VS | 5.0i V8/1996.06-2000.12/50LB9 4987 Petrol 168 kW 228 BHP (1996.06 - 2000.12)
Holden/H Series/VS | 5.0i V8/1997.06-1997.09/50LB9 4987 Petrol 168 kW 228 BHP (1997.06 - 1997.09)
Holden/H Series/VT | 5.0 V8/1997.09-1999.06/50LB9 4987 Petrol 179 kW 243 BHP (1997.09 - 1999.06)
Holden/H Series/VT | 5.0i V8/1997.09-2002.08/50LB9 4987 Petrol 179 kW 243 BHP (1997.09 - 2002.08)
Holden/H Series/VT | 5.0i V8/1998.04-2000.08/50LB9 4987 Petrol 195 kW 265 BHP (1998.04 - 2000.08)
Holden/H Series/VT | 5.0 V8/1998.04-2000.10/50LB9 4987 Petrol 195 kW 265 BHP (1998.04 - 2000.10)
Holden/H Series/VS | 5.0i V8/1995.08-1997.06/GMH 308 4987 Petrol 165 kW 224 BHP (1995.08 - 1997.06)
Holden/H Series/VS | 5.0i V8/1997.06-1997.09/GMH 308 4987 Petrol 168 kW 228 BHP (1997.06 - 1997.09)
HSV/Clubsport/VS | 5.0i V8/1995.04-1997.08/GMH308 4987 Petrol 185 kW 252 BHP (1995.04 - 1997.08)
HSV/Clubsport/VT | 5.0i V8/1997.01-1999.06/GMH308 4987 Petrol 195 kW 265 BHP (1997.01 - 1999.06)
HSV/Manta/VS | 5.0i V8/1995.04-1997.08/VU 4987 Petrol 185 kW 252 BHP (1995.04 - 1997.08)
HSV/Senator/VS | 5.0i V8/1995.04-1997.08/VU 4987 Petrol 185 kW 252 BHP (1995.04 - 1997.08)
HSV/Maloo/VS | 5.0i V8/1995.04-1999.05/VU 4987 Petrol 185 kW 252 BHP (1995.04 - 1999.05)
HSV/Maloo/VS | 5.0i V8/1995.05-2000.10/VU 4987 Petrol 195 kW 265 BHP (1995.05 - 2000.10)
HSV/Manta/VT | 5.0i V8/1997.09-1999.01/VU 4987 Petrol 195 kW 265 BHP (1997.09 - 1999.01)
HSV/Senator/VT | 5.0i V8/1997.09-2000.08/VU 4987 Petrol 195 kW 265 BHP (1997.09 - 2000.08)
HSV/XU8/VT | 5.0i V8/1999.01-1999.06/VU 4987 Petrol 195 kW 265 BHP (1999.01 - 1999.06) ,
- Scrivi una recensione
Non hai trovato la tua domanda?
Inserire nuova domanda Hai una domanda? Cerca una risposta.
| Marchio | Modello | Type | Codice motore |
|---|---|---|---|
| HSV | Clubsport | VS 5.0i V8 | GMH308 4987 Petrol 185 kW 252 BHP (1995.04 - 1997.08) |
| HSV | Clubsport | VT 5.0i V8 | GMH308 4987 Petrol 195 kW 265 BHP (1997.01 - 1999.06) |
| HSV | Maloo | VS 5.0i V8 | VU 4987 Petrol 185 kW 252 BHP (1995.04 - 1999.05) |
| HSV | Maloo | VS 5.0i V8 | VU 4987 Petrol 195 kW 265 BHP (1995.05 - 2000.10) |
| HSV | Manta | VS 5.0i V8 | VU 4987 Petrol 185 kW 252 BHP (1995.04 - 1997.08) |
| HSV | Manta | VT 5.0i V8 | VU 4987 Petrol 195 kW 265 BHP (1997.09 - 1999.01) |
| HSV | Senator | VS 5.0i V8 | VU 4987 Petrol 185 kW 252 BHP (1995.04 - 1997.08) |
| HSV | Senator | VT 5.0i V8 | VU 4987 Petrol 195 kW 265 BHP (1997.09 - 2000.08) |
| HSV | XU8 | VT 5.0i V8 | VU 4987 Petrol 195 kW 265 BHP (1999.01 - 1999.06) |
| Holden | H Series | 5.0 i V8 | 50LB9 4987 Petrol 168 kW 228 BHP (1995.04 - 1999.06) |
| Holden | H Series | VS 5.0i V8 | 50LB9 4987 Petrol 165 kW 224 BHP (1995.08 - 1997.06) |
| Holden | H Series | VS 5.0i V8 | 50LB9 4987 Petrol 168 kW 228 BHP (1995.04 - 1999.06) |
| Holden | H Series | VS 5.0i V8 | 50LB9 4987 Petrol 168 kW 228 BHP (1996.06 - 2000.12) |
| Holden | H Series | VS 5.0i V8 | 50LB9 4987 Petrol 168 kW 228 BHP (1997.06 - 1997.09) |
| Holden | H Series | VS 5.0i V8 | GMH 308 4987 Petrol 165 kW 224 BHP (1995.08 - 1997.06) |
| Holden | H Series | VS 5.0i V8 | GMH 308 4987 Petrol 168 kW 228 BHP (1997.06 - 1997.09) |
| Holden | H Series | VT 5.0 V8 | 50LB9 4987 Petrol 179 kW 243 BHP (1997.09 - 1999.06) |
| Holden | H Series | VT 5.0 V8 | 50LB9 4987 Petrol 195 kW 265 BHP (1998.04 - 2000.10) |
| Holden | H Series | VT 5.0i V8 | 50LB9 4987 Petrol 179 kW 243 BHP (1997.09 - 2002.08) |
| Holden | H Series | VT 5.0i V8 | 50LB9 4987 Petrol 195 kW 265 BHP (1998.04 - 2000.08) |
