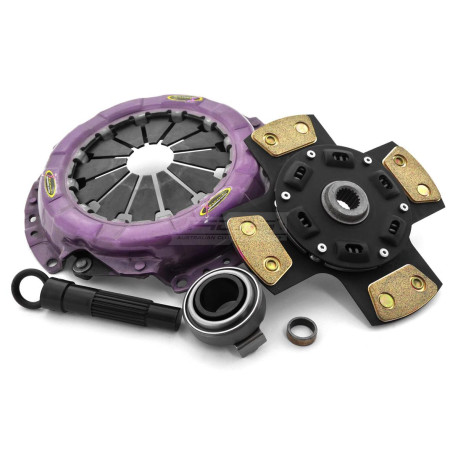

KHN22026-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 450Nm

Xtreme Performance - sprung ceramic kit /-1BRecommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 450Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KHN22026-1B

Weight: 6.62

Note:

Clutch Disc Diameter (mm): 215
Clutch Disc Spline Count: 20
Clutch Disc Spline Diameter (mm): 22
Torque (Nm): 450
Flywheel Step:
Design: Single Plate
Stage: Stage 2
Clamp Load:
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Honda/Civic/Gen. VIII | 1.6 (FD6)/2005.09-2012.12/R16A1 1595 Petrol 84 kW 114 BHP (2005.09 - 2012.12)
Honda/Civic/Gen. VIII | 1.6/2005.09-2012.12/R16A1 1595 Petrol 92 kW 125 BHP (2005.09 - 2012.12)
Honda/Civic/Gen. VIII | 1.6/2012.01-2012.12/R16B1 1597 Petrol 92 kW 125 BHP (2012.01 - 2012.12)
Honda/Civic/Gen. IX | 1.6 (FB7. FB1)/2011-2017/R16B1, R16B2 1597 Petrol 92 kW 125 BHP (2011-2017)
Honda/Civic/Gen. VIII | 1.8 EXS Flex/2006.11-2013.05/R18A1 1799 Petrol 103 kW 140 BHP (2006.11 - 2013.05)
Honda/Civic/Gen. IX | 1.8 (FB2)/2011-2017/R18A1 1799 Petrol 104 kW 141 BHP (2011-2017)
Honda/Civic/Gen. VIII | 1.8 (FD1. FD7)/2005.09-2012.02/R18A1, R18A2 1799 Petrol 103 kW 140 BHP (2005.09 - 2012.02)
Honda/Civic/Gen. VIII | 1.8 (FN1. FK2)/2005.09-2011.12/R18A2 1799 Petrol 103 kW 140 BHP (2005.09 - 2011.12)
Honda/Civic/Gen. IX | 1.8 i-VTEC (FK2)/2012-2017/R18Z4 1798 Petrol 104 kW 141 BHP (2012-2017)
Honda/Civic/Gen. IX | 1.8 i-VTEC (FK2)/2014-2017/R18Z4 1798 Petrol 104 kW 141 BHP (2014-2017)
Honda/Civic/Gen. IX | 1.8 (FB2)/2012-2017/R18Z4, R18Z1 1798 Petrol 104 kW 141 BHP (2012-2017) ,
