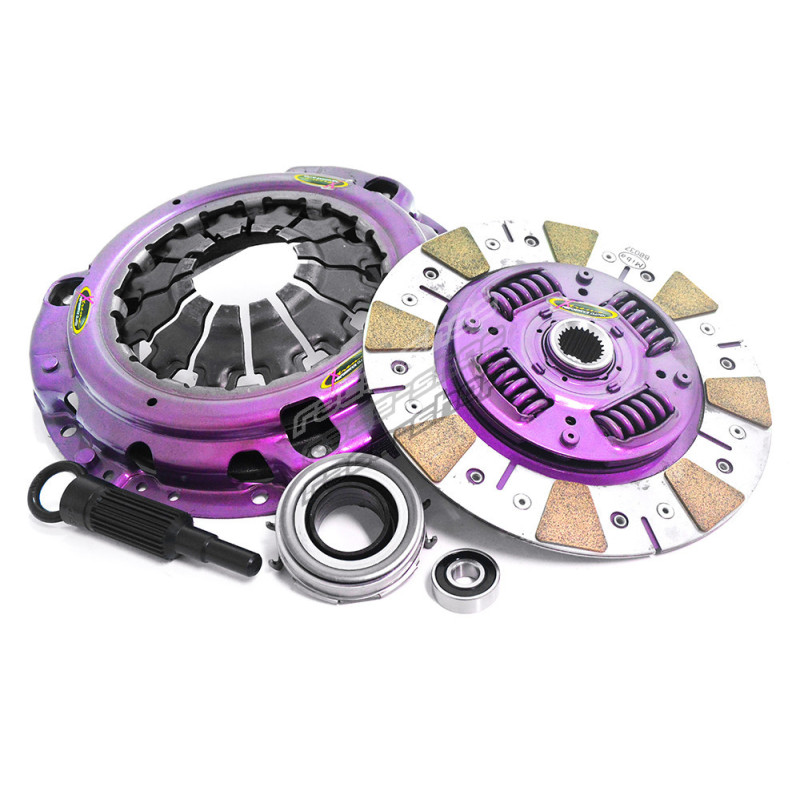

KSU23012-1CX Clutch Kit Xtreme Performance Extra Heavy Duty Cushioned Ceramic 1020Kg 690Nm

Xtreme Performance - Extra Cushioned Ceramic kit /-1CXRecommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 690Nm
• Clamp load 1020Kg Increased over standard
• Cushioned Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KSU23012-1CX

Weight: 6.9

Note:

Clutch Disc Diameter (mm): 230
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.2
Torque (Nm): 690
Flywheel Step: -2.0mm
Design: Single Plate
Stage:
Clamp Load: 1020Kg
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Toyota/GT86/2.0 (ZN6AC_. ZN6BC_)/2012.03-2016.08/FA20, FA20D, 4U-GSE 1998 Petrol 147 kW 200 BHP (2012.03 - 2016.08)
Subaru/BRZ/2.0 (ZC6)/2016.08-2021/FA20C 1998 Petrol 152 kW 207 BHP (2016.08 - 2021)
Subaru/BRZ/2.0 (ZC6)/2012.06-2016.08/FA20D 1998 Petrol 147 kW 200 BHP (2012.06 - 2016.08)
Toyota/GT86/2.0 (ZN6EY_)/2016.08-2022/FA20D, 4U-GSE 1998 Petrol 152 kW 207 BHP (2016.08 - 2022)
Subaru/BRZ/2.4 (ZD8)/2021.10-/FA24C, FA24D 2387 Petrol 174 kW 237 BHP (2021.10 -)
Toyota/GR86/2.4 (ZN8)/2022.05-/FA24C, FA24D 2387 Petrol 174kW 237 BHP (2022.05 -) ,
