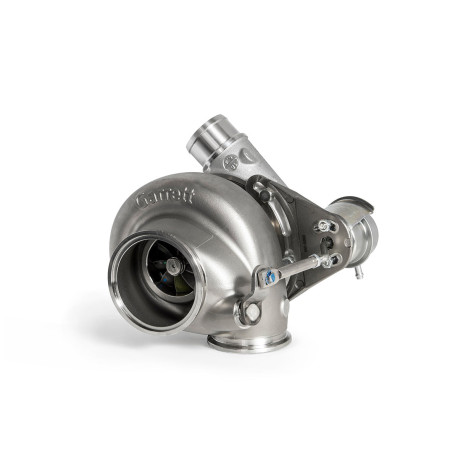

GARRETT 880704-5008S TURBO ASSY KIT G3076 STANDARD ROTATION G30-900 AR 0,83 V-BAND

Product Features:

• New G Series compressor wheel aerodynamics
• Fully machined speed sensor and pressure ports
• Standard and reverse rotation configurations available
• Oil restrictor and water fittings included with purchase
• One piece center housing and backplate for increased durability
• 4 water jacket ports for customizable installation
• Mar-M turbine wheel material rated up to 1050° C | 1922° F
• Stainless steel turbine housings for temperatures up to 1050° C | 1922° F

Product Specifications:

• Compressor Wheel Inducer: 62mm
• Compressor Wheel Exducer: 76mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.72
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84
• Turbine Housing Inlet: 3 Inch O.D. V-Band
• Turbine Housing Outlet: 3.55 inch (90mm)O.D. w/81mm centering ring V-Band
• Includes Oil Feed (1mm) Restrictor Fitting to -4AN
• Includes two Coolant Fittings to -6AN
• Includes Turbine Housing Inlet & Outlet V-Band Clamps

WARNING: Dear customer - G series turbochargers are highly efficient units that don't require a high boost for reaching its limits.  Please pay attention that maximum allowable turbocharger speed is 165krpm ( G series ) . The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating a speed sensor, part numbers  781328-0004 (single speed sensor that should be connected) or GARRETT G-SMART MODULE ( Module | Harness | Flange Speed Sensor G-Series ) must be fitted and monitored during fine and tune as well as with use of the unit. Missing of the sensors or RPM data will void  warranty on product.

Product category: Turbocharger
