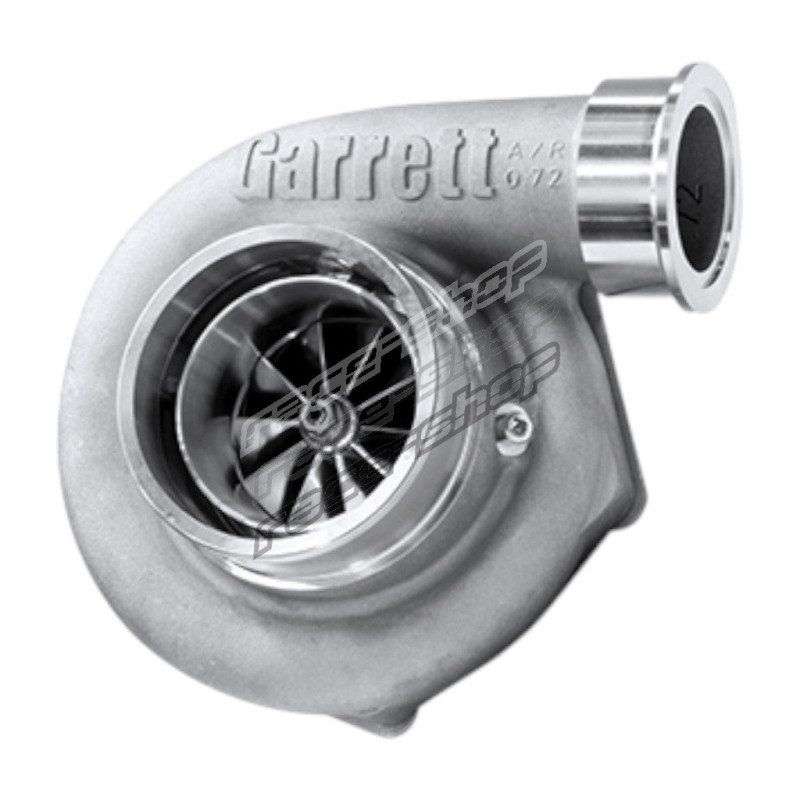

GARRETT 846098-5001S SUPER CORE GTX3584RS TURBOCHARGER (WITHOUT TURBINE HOUSING)

Description GARRETT 846098-5001S Super Core GTX3584RS Turbocharger (Without Turbine Housing)

The GARRETT 846098-5001S GTX3584RS Super Core turbocharger is a mid-frame unit engineered to deliver 550–1000 horsepower for 2.0L to 5.5L engines. This clean-sheet design incorporates advanced turbine and compressor technologies, making it the only mid-frame turbo in its class capable of achieving such performance. A newly developed high-horsepower turbine wheel provides improved exhaust flow and reduced backpressure compared to previous GT/GTX designs, paired with exclusive stainless steel turbine housings available in 0.83, 1.01, and 1.21 A/R. The Gen II ten-blade compressor wheel, combined with a 0.72 A/R housing, increases mass air flow and widens the tuning range. The dual ceramic ball bearing cartridge enhances response and durability, while machined speed sensor provisions allow precise monitoring of turbo speed during operation.

• Power range: 550–1000 HP for 2.0L–5.5L engines
• Exclusive high-flow turbine wheel with improved aerodynamic efficiency
• Stainless steel turbine housings available in 0.83, 1.01, and 1.21 A/R
• Ten-blade GTX Gen II compressor wheel for higher mass flow
• 0.72 A/R compressor housing for efficient airflow
• 8mm dual ceramic ball bearing cartridge for faster response and reliability
• Fully-machined compressor inlet, outlet, and ported shroud
• Integrated speed sensor port (sensor sold separately)
• Compressor outlet available in V-band and hose connection options

Product category: Turbocharger
