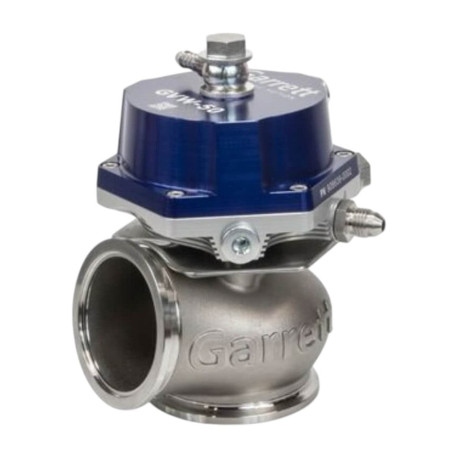

GARRETT 908828-0002 EXTERNAL WASTEGATE GVW-45 1 BAR (14.5 PSI) BLUE

Description GARRETT 908828-0002 External Wastegate GVW-45 1 Bar (14.5 PSI) Blue

The GARRETT 908828-0002 GVW-45 external wastegate in blue finish is designed to regulate turbocharger shaft speed by diverting exhaust gases around the turbine stage. Featuring a CFD-optimized design, it maximizes flow efficiency and ensures precise boost control. The advanced thermal optimization enhances diaphragm durability, while liquid-cooled actuator ports reduce body temperature by up to 52% under severe conditions. The anodized aluminum actuator cover provides strength and corrosion resistance, and the robust construction allows for quick spring changes and easy diaphragm servicing. Supplied with springs, fittings, flanges, and V-band connections, the GVW-45 offers reliability and flexibility for demanding motorsport and performance applications.

• CFD-tested design for maximum flow and boost control
• Optimized thermal resistance for long diaphragm life
• Replaceable valve and bushing components for extended service life
• Liquid-cooled actuator ports reduce body temperature by up to 52%
• Anodized aluminum actuator cover in blue finish
• Available in four colors: Red / Blue / Black / Silver
• Sizes: 40mm / 45mm / 50mm / 60mm
• Includes springs, fittings, flanges, and V-band clamps
• Standard base pressure: 1 Bar / 14.5 PSI
• Maximum base pressure: 23 PSI / 1.6 Bar (GVW-45)
• Minimum base pressure: 3 PSI / 0.2 Bar

Product category: Wastegate
