KMC20520-2B Xtreme Performance 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Nuovo prodotto
KMC20520-2B
9337467211443
Accessori
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Motorsport 200mm twin plateThe Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

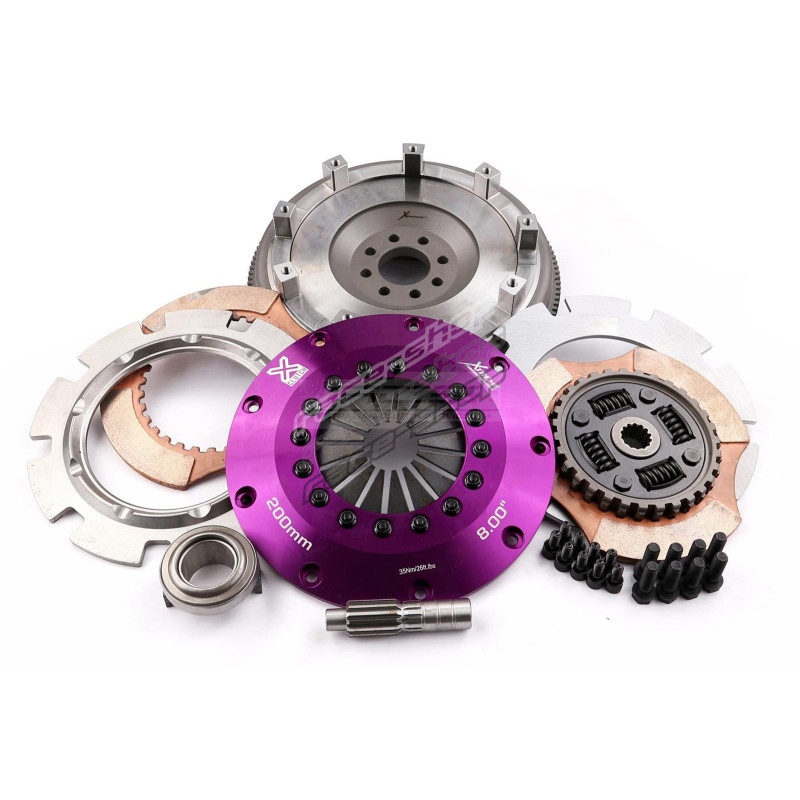

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Tech. Info:
Reference: KMC20520-2B
Weight: 14.95
Note:
Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 14
Clutch Disc Spline Diameter (mm): 25
Torque (Nm): 1200
Flywheel Step:
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load:
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:
200mm Twin Plate
Suitable for:
- MINI/MINI Cabriolet (R52)/Cooper S/2004.07-2007.11/W11 B16 A 1598 Petrol 120 kW 163 BHP (2004.07 - 2007.11)
MINI/MINI (R50, R53)/S Works/2003.11-2005.06/W11 B16 A 1598 Petrol 149 kW 203 BHP (2003.11 - 2005.06)
MINI/MINI Cabriolet (R52)/John Cooper Works/2004.07-2007.11/W11 B16 A 1598 Petrol 155 kW 210 BHP (2004.07 - 2007.11)
MINI/MINI (R50, R53)/John Cooper Works/2006.03-2006.09/W11 B16 A 1598 Petrol 160 kW 218 BHP (2006.03 - 2006.09) ,
- Scrivi una recensione
Non hai trovato la tua domanda?
Inserire nuova domanda Hai una domanda? Cerca una risposta.
| Marchio | Modello | Type | Codice motore |
|---|---|---|---|
| MINI | MINI (R50, R53) | John Cooper Works | W11 B16 A 1598 Petrol 160 kW 218 BHP (2006.03 - 2006.09) |
| MINI | MINI (R50, R53) | S Works | W11 B16 A 1598 Petrol 149 kW 203 BHP (2003.11 - 2005.06) |
| MINI | MINI Cabriolet (R52) | Cooper S | W11 B16 A 1598 Petrol 120 kW 163 BHP (2004.07 - 2007.11) |
| MINI | MINI Cabriolet (R52) | John Cooper Works | W11 B16 A 1598 Petrol 155 kW 210 BHP (2004.07 - 2007.11) |
