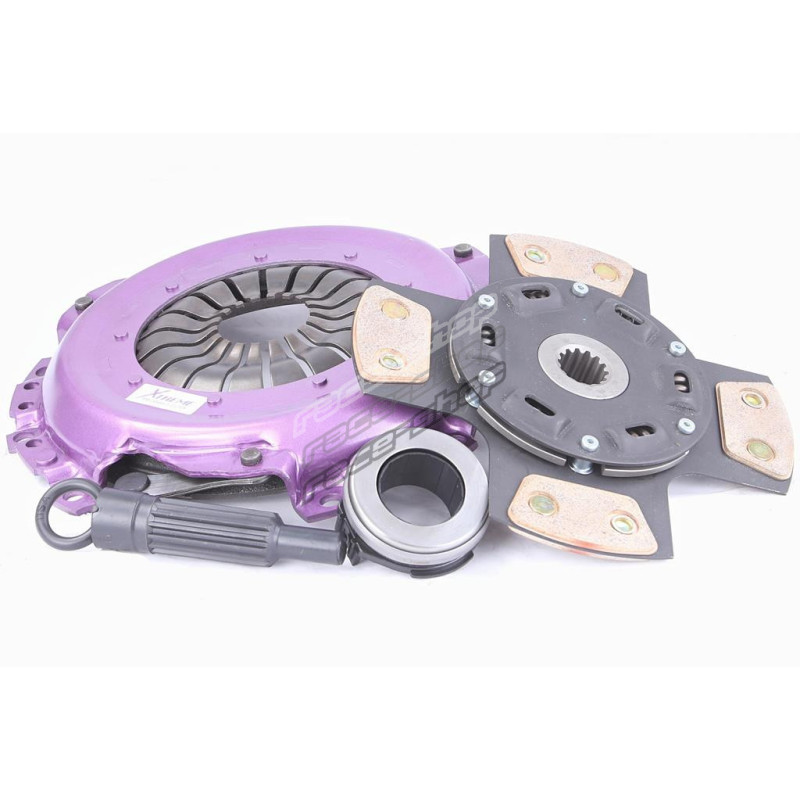

KMC22091-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 470Nm 750kg (25%)

Xtreme Performance - sprung ceramic kit /-1BRecommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 470Nm
• Clamp load 750kg 25% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KMC22091-1B

Weight: 7.94

Note:

Clutch Disc Diameter (mm): 215
Clutch Disc Spline Count: 14
Clutch Disc Spline Diameter (mm): 25
Torque (Nm): 310
Flywheel Step: -3.7mm
Design: Single Plate
Stage: Stage 2
Clamp Load: 750Kg (25% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate - Conversion Kit to Solid Flywheel

Suitable Only for Conversion Kit KMC22591-1*

Suitable for:

- MINI/MINI (R50, R53)/Cooper S/2002.03-2006.09/W11 B16 A 1598 Petrol 120 kW 163 BHP (2002.03 - 2006.09) , Suitable Only for Conversion Kit KMC22591-1*
MINI/MINI Cabriolet (R52)/Cooper S/2004.07-2007.11/W11 B16 A 1598 Petrol 120 kW 163 BHP (2004.07 - 2007.11) , Suitable Only for Conversion Kit KMC22591-1*
MINI/MINI (R50, R53)/Cooper S/2004.07-2006.09/W11 B16 A 1598 Petrol 125 kW 170 BHP (2004.07 - 2006.09) , Suitable Only for Conversion Kit KMC22591-1*
MINI/MINI Cabriolet (R52)/Cooper S/2004.07-2007.11/W11 B16 A 1598 Petrol 125 kW 170 BHP (2004.07 - 2007.11) , Suitable Only for Conversion Kit KMC22591-1*
MINI/MINI (R50, R53)/S Works/2003.11-2005.06/W11 B16 A 1598 Petrol 149 kW 203 BHP (2003.11 - 2005.06) , Suitable Only for Conversion Kit KMC22591-1*
MINI/MINI (R50, R53)/Works/2003.11-2006.09/W11 B16 A 1598 Petrol 155 kW 210 BHP (2003.11 - 2006.09) , Suitable Only for Conversion Kit KMC22591-1*
MINI/MINI Cabriolet (R52)/John Cooper Works/2004.07-2007.11/W11 B16 A 1598 Petrol 155 kW 210 BHP (2004.07 - 2007.11) , Suitable Only for Conversion Kit KMC22591-1*
MINI/MINI (R50, R53)/John Cooper Works/2006.03-2006.09/W11 B16 A 1598 Petrol 160 kW 218 BHP (2006.03 - 2006.09) , Suitable Only for Conversion Kit KMC22591-1*
