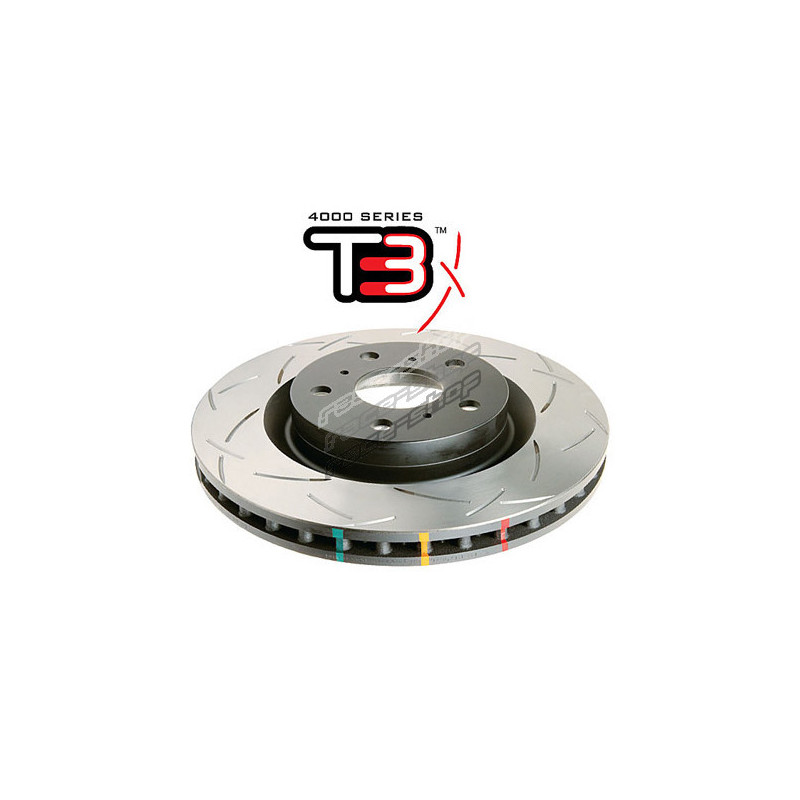

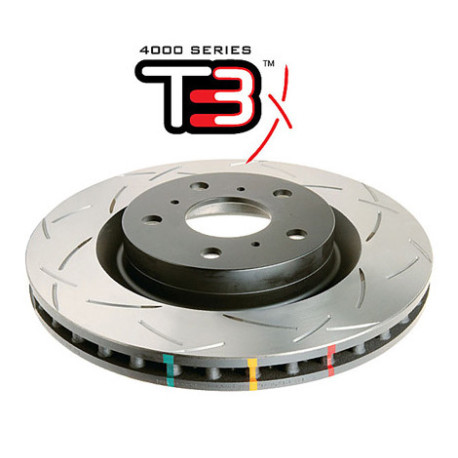

DBA 4000 series T3 DBA42720S (2 pcs)

Feature: T3 Slot – 48 precision CNC machined slots

Advantage: Tri-symmetrical curve slots dampen vibration harmonics or noise

Benefit: A quieter, responsive and smoother brake pedal feel

Advantage: Increased number of out-gassing exit points for brake pad friction gases to escape through

Benefit: Increases the consistency and effectiveness of every brake stop

Advantage: Universal slot design

Benefit: Eliminates the need for left and right discs

Feature: Kangaroo Paw – 144 diamond and tear drop pillar ventilation system

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Minimises brake fade and increases braking effectiveness

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs

Feature: XG150 High Carbon Alloyed Iron

Advantage: Increased thermal capacity allows handling constant extremes of heat

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermal Stability Profiling (TSP)

Advantage: Special formulation responds to DBA’s TSP process

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermographic Temperature Monitoring

Advantage: Heat paint markings change colour at specific temperature thresholds

Benefit: Offers the driver a clear indication of peak braking temperatures

Advantage: Permanent colour change when temperature thresholds are exceeded

Benefit: Allows monitoring of rotor fatigue and supports warranty claims

Feature: Paint protection on non-friction areas

Advantage: Reduces corrosion

Benefit: Prevents unsightly rust formation

Advantage: Enhances appearance

Benefit: Adds value to the product

Technical information:

Diameter [mm]: 334
Disc Vent: Kangaroo Paw
Number of Holes: 5
Thickness [mm]: 30
Minimum Thickness [mm]: 27
Inner Diameter [mm]: 62
Height [mm]: 51
Stage: Stage 4
ECE R90 number: E11*90R02/06*60532*00

Suitable for:

Front - LEXUS/GS250/2.5 (2012-) Brake Pads: DB2255, Front - LEXUS/GS300/3.0 (2005-2012) Brake Pads: DB2255, Front - LEXUS/GS300h/2.5 hydrid (2013-2019) Brake Pads: DB2255, Front - LEXUS/GS430/4.3 (2005-2012) Brake Pads: DB2255, Front - LEXUS/GS450h/3.5 Hybrid (2006-2012) Brake Pads: DB2255, Front - LEXUS/GS450h/3.5 Hybrid (2012-2019) Brake Pads: DB2255, Front - LEXUS/GS460/4.6 (2008-2012) Brake Pads: DB2255, Front - LEXUS/IS200t/2.0 Turbo 241BHP (2015-2017) Brake Pads: DB2255, Front - LEXUS/IS300/2.0 Turbo 241BHP (2017-) Brake Pads: DB2255, Front - LEXUS/RC200t/2.0 Turbo 245BHP (2016-2018) Brake Pads: DB2255, Front - LEXUS/RC300h/2.5 Hybrid 223BHP (2016-) Brake Pads: DB2255,
