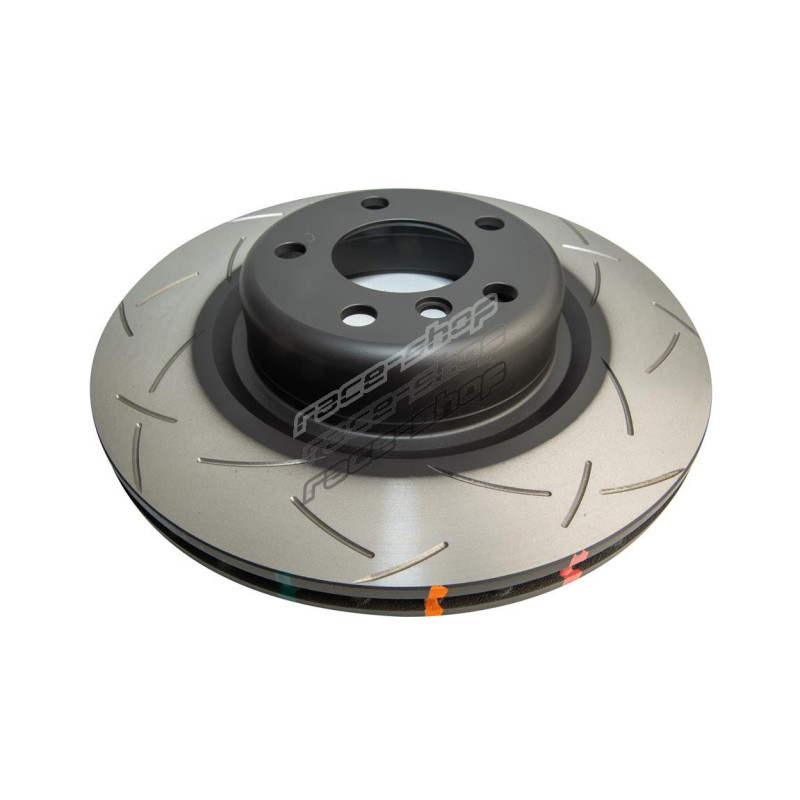

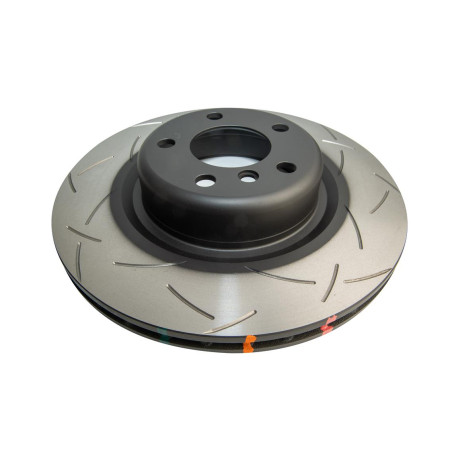

DBA 4000 series T3 DBA42677S (2 pcs)

Feature: T3 Slot – 48 precision CNC machined slots

Advantage: Tri-symmetrical curve slots dampen vibration harmonics or noise

Benefit: A quieter, responsive and smoother brake pedal feel

Advantage: Increased number of out-gassing exit points for brake pad friction gases to escape through

Benefit: Increases the consistency and effectiveness of every brake stop

Advantage: Universal slot design

Benefit: Eliminates the need for left and right discs

Feature: Kangaroo Paw – 144 diamond and tear drop pillar ventilation system

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Minimises brake fade and increases braking effectiveness

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs

Feature: XG150 High Carbon Alloyed Iron

Advantage: Increased thermal capacity allows handling constant extremes of heat

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermal Stability Profiling (TSP)

Advantage: Special formulation responds to DBA’s TSP process

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermographic Temperature Monitoring

Advantage: Heat paint markings change colour at specific temperature thresholds

Benefit: Offers the driver a clear indication of peak braking temperatures

Advantage: Permanent colour change when temperature thresholds are exceeded

Benefit: Allows monitoring of rotor fatigue and supports warranty claims

Feature: Paint protection on non-friction areas

Advantage: Reduces corrosion

Benefit: Prevents unsightly rust formation

Advantage: Enhances appearance

Benefit: Adds value to the product

Technical information:

Diameter [mm]: 345
Disc Vent: Kangaroo Paw
Number of Holes: 5
Inner Diameter [mm]: 75
Minimum Thickness [mm]: 22,4
Thickness [mm]: 24
Height [mm]: 66.1
Pitch Circle [mm]: 120
Stage: Stage 4

Suitable for:

Rear - BMW/1 Series (F20) M135/3.0 Turbo 320BHP (2012-2017) , Brake Caliper: Brembo Rear - BMW/1 Series (F20) M140/3.0 Turbo 340BHP (2016-2019) , Brake Caliper: Brembo Rear - BMW/1 Series (F21) M135/3.0 Turbo 320BHP (2012-2017) , Brake Caliper: Brembo Rear - BMW/1 Series (F21) M140/3.0 Turbo 340BHP (2016-2019) , Brake Caliper: Brembo Rear - BMW/1 Series (xDrive F20) M135/3.0 Turbo 320BHP (2012-2017) , Brake Caliper: Brembo Rear - BMW/1 Series (xDrive F20) M140/3.0 Turbo 340BHP (2016-2019) , Brake Caliper: Brembo Rear - BMW/1 Series (xDrive F21) M135/3.0 Turbo 320BHP (2012-2017) , Brake Caliper: Brembo Rear - BMW/1 Series (xDrive F21) M140/3.0 Turbo 340BHP (2016-2019) , Brake Caliper: Brembo Rear - BMW/2 Series (F22 Coupe) 228/2.0 Turbo 240BHP (2014-2016) , Brake Caliper: Brembo Rear - BMW/2 Series (F22 Coupe) 230/2.0 Turbo 252BHP (2016-) , Brake Caliper: Brembo Rear - BMW/2 Series (F22 Coupe) M235/3.0 Turbo 326BHP (2013-2016) , Brake Caliper: Brembo Rear - BMW/2 Series (F22 Coupe) M240/3.0 Turbo 340BHP (2016-) , Brake Caliper: Brembo Rear - BMW/2 Series (F23 Convertible) 230/2.0 Turbo 252BHP (2016-) , Brake Caliper: Brembo Rear - BMW/2 Series (F23 Convertible) M235/3.0 Turbo 326BHP (2014-2016) , Brake Caliper: Brembo Rear - BMW/2 Series (F23 Convertible) M240/3.0 Turbo 340BHP (2016-) , Brake Caliper: Brembo Rear - BMW/2 Series (xDrive F22 Coupe) M235/3.0 Turbo 326BHP (2013-2016) , Brake Caliper: Brembo Rear - BMW/2 Series (xDrive F22 Coupe) M240/3.0 Turbo 340BHP (2016-) , Brake Caliper: Brembo Rear - BMW/2 Series (xDrive F23 Convertible) M235/3.0 Turbo 326BHP (2014-2016) , Brake Caliper: Brembo Rear - BMW/2 Series (xDrive F23 Convertible) M240/3.0 Turbo 340BHP (2016-) , Brake Caliper: Brembo Rear - BMW/3 Series (F30) 320/2.0 TD (2012-2019) , Brake Caliper: Brembo Rear - BMW/3 Series (F30) 320/2.0 Turbo (2012-2019) , Brake Caliper: Brembo Rear - BMW/3 Series (F30) 325/2.0 TD (2013-2019) , Brake Caliper: Brembo Rear - BMW/3 Series (F31) 320/2.0 TD (2012-2019) , Brake Caliper: Brembo Rear - BMW/3 Series (F31) 320/2.0 Turbo (2012-2019) , Brake Caliper: Brembo Rear - BMW/3 Series (F31) 325/2.0 TD (2013-2019) , Brake Caliper: Brembo Rear - BMW/4 Series (F32 Coupe) 420/2.0 TD 181BHP (2013-2015) , Brake Caliper: Brembo Rear - BMW/4 Series (F32 Coupe) 420/2.0 TD 190BHP (2015-2020) , Brake Caliper: Brembo Rear - BMW/4 Series (F32 Coupe) 420/2.0 Turbo 181BHP (2013-2020) , Brake Caliper: Brembo Rear - BMW/4 Series (F32 Coupe) 425/2.0 TD 215BHP (2014-2020) , Brake Caliper: Brembo Rear - BMW/4 Series (F36 Gran Coupe) 420/2.0 TD 181BHP (2014-2015) , Brake Caliper: Brembo Rear - BMW/4 Series (F36 Gran Coupe) 420/2.0 TD 190BHP (2015-2020) , Brake Caliper: Brembo Rear - BMW/4 Series (xDrive F32 Coupe) 420/2.0 TD 181BHP (2014-2015) , Brake Caliper: Brembo Rear - BMW/4 Series (xDrive F32 Coupe) 420/2.0 TD 190BHP (2015-2020) , Brake Caliper: Brembo Rear - BMW/4 Series (xDrive F32 Coupe) 420/2.0 Turbo 181BHP (2013-2020) , Brake Caliper: Brembo Rear - BMW/4 Series (xDrive F36 Gran Coupe) 420/2.0 TD 181BHP (2014-2015) , Brake Caliper: Brembo Rear - BMW/4 Series (xDrive F36 Gran Coupe) 420/2.0 TD 190BHP (2015-2020) , Brake Caliper: Brembo
