TA-Technix airride kit with air management for Volkswagen Jetta I Typ 16

TA Technix Air Damper Kit + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)

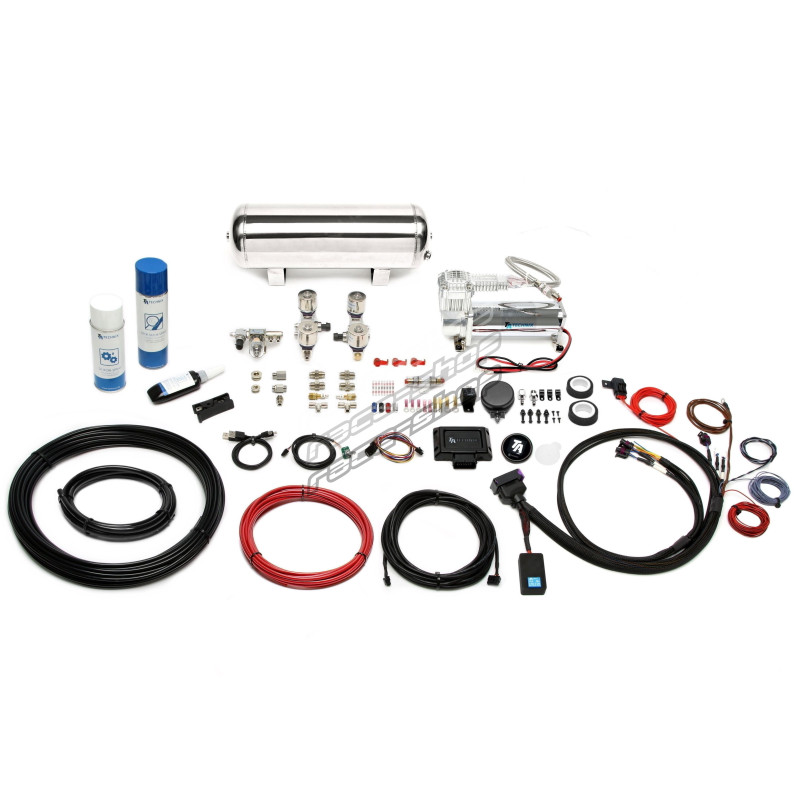

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in chrome
- 11.5 litre chrome tank
- Electronics set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 metre 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Volkswagen Golf I incl. convertible, model 17 / 155, year of construction 1974 - 1993
Volkswagen Jetta I, Type 16, Year of manufacture 1979 - 1984
Volkswagen Scirocco I, Type 53, Year of manufacture 1974 - 1981
Volkswagen Scirocco II, Type 53B, Year of manufacture 1981 - 1992
maximum front axle load: 785kg
maximum rear axle load: 640kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

-

Axle:

-

KeyType number:

1612,1613,1617,1618,1619,1621,1624,1625,1628,1629,1631,1633,1637,1638,1639,1640,1642,1643,1735,1736,1737,1738,1739,1740,1741,1742,1743,1744,1745,1746,1747,1748,1749,1750,1751,1752,1943,1944,1945,1946,1947,1948,1949,6236,6264,6265,19381,19382,19384,19385,19386,19419,20287,25058,27713,28699,59336,59429,59432
