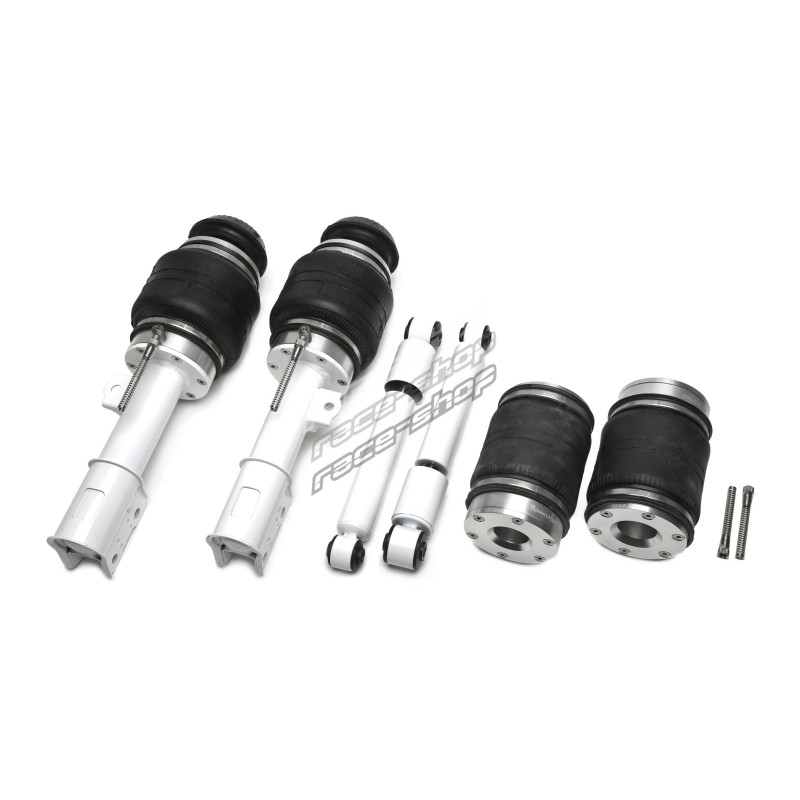

TA-Technix airride kit with air management for Opel Astra G Coupe Typ T98

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in chrome
- 19 litre chrome tank
- Electronics set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Opel Astra G CC, - notchback, - caravan,
Astra G Coupe, - Convertible, Type T98
year of construction 1998 - 2009
maximum front axle load: 1030kg
maximum rear axle load: 895kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

-

Axle:

-

KeyType number:

8993,8994,8995,8996,8997,8998,8999,9000,9001,9002,9003,9004,9005,9006,9693,9694,9695,9696,9983,9984,9985,9986,9987,10163,10164,10165,10166,10167,12319,13365,13742,13743,13860,13861,14158,14181,14182,14684,14685,15337,15338,15339,15340,15341,15342,15343,15344,15345,15756,15757,15758,15776,15777,15778,16371,16736,16830,16971,16972,16973,16974,16975,17095,17099,17245,17246,17247,17248,17249,17250,17251,17252,17253,17254,17712,18559,23659,23660,23685,55911,55912
