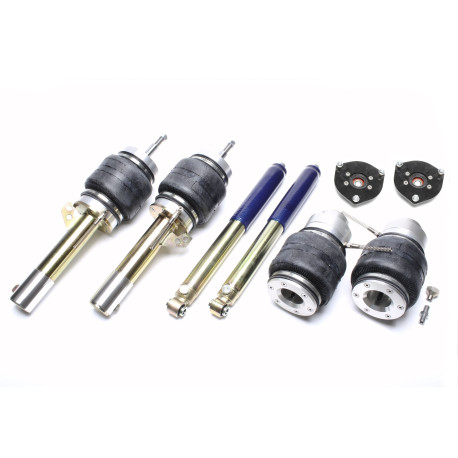

TA-Technix hardness adjustable air suspension kit for Audi TT (8J)

TA Technix air damper set + TA Technix air generation kit for air suspension / airride

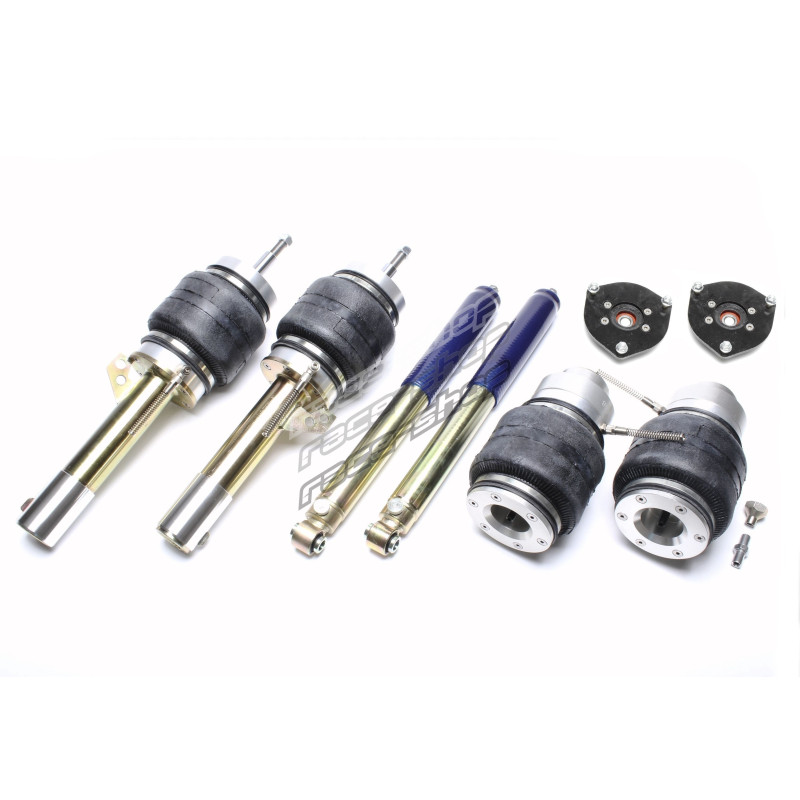

TA Technix hardness adjustable air damper set

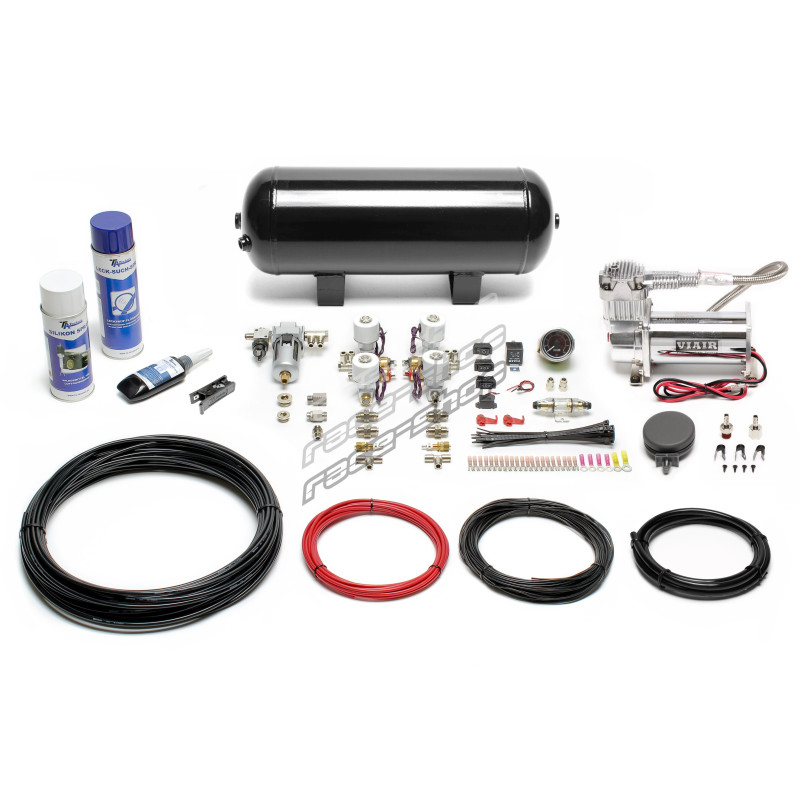

TA Technix air generation kit for air suspension / airride
380 Viair compressor
11,5 litre black tank
Viair dual pressure gauge in black
25 meter 6mm PU hose in black
Hose cutter
4 x 2/2 way valves 1/4
Warning buzzer and LED
Normally closed and normally open pressure switch
Electronic set incl. 3 switches, flat plug sleeves, cable, cable ties and relay
all fittings incl. check valve and safety valve
2 x emergency filling valves
Safety valve
Water separator
Leak detection spray
Silicone spray
Thread sealant

suitable for:
Audi TT incl. Roadster, Type 8J
year of construction 2006 - 2014
models with front wheel drive
maximum front axle load: 1035kg
maximum rear axle load: 880kg

Approval:

Including parts report (§19.3)

Implementation notes:

Hardness adjustment:
VA infinitely adjustable using an adjustment knob from above
HA using an adjustment knob on the lower part of the damper body (compression + rebound at the same time)

Notes:

Coupling rods EVOPE003 must be installed
Front-wheel drive models

Axle:

-

KeyType number:

19453,28278,6625,19806,28280
