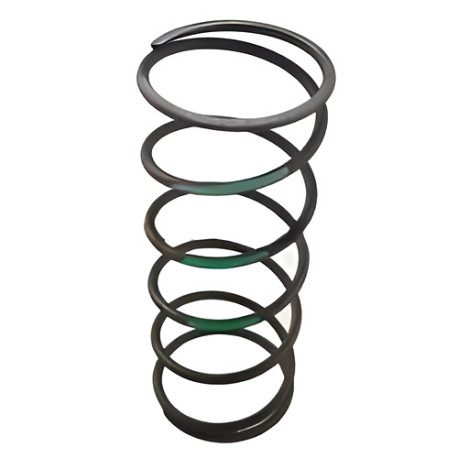

Garrett 898344-0003 Wastegate Spring GVW-40 (Green)

Garrett wastegate spring for GVW-40.

The Garrett 898344-0003 Spring Valve Green is a component designed for use with the Wastegate GVW-40, which is commonly used in turbocharged engines.

The spring valve is responsible for regulating the pressure of the exhaust gases that pass through the turbocharger, which in turn controls the boost pressure of the engine.

The color green indicates the specific tension of the spring, which is a crucial factor in determining the overall performance of the wastegate.

A spring with too little tension may result in excessive boost pressure, while a spring with too much tension may cause the wastegate to open prematurely, resulting in reduced power output.

Specifications

• Size: Green
• Fits: GVW-40

Features

• 17/7 PH stainless steel
• Max Spring Base Pressure: 1.7 bar / 25 psi (1:1 backpressure ratio)
• Minimum Spring Base Pressure: 0.2 bar / 3 psi (1:1 backpressure ratio)
• Spring - suit Garret GVW-40 /Garrett GVW-45 / Garrett GVW-50
