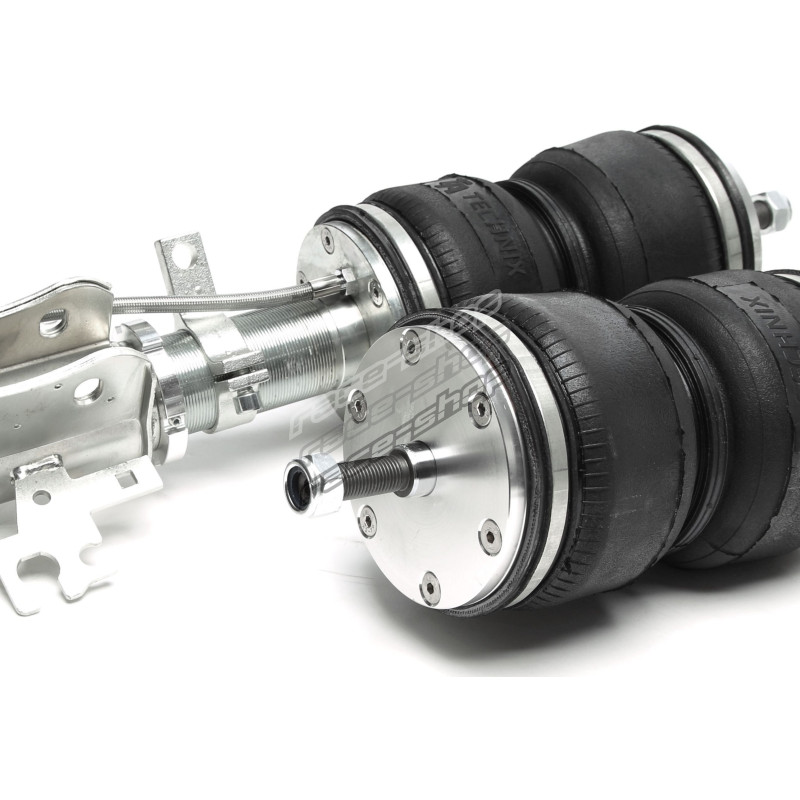

TA-Technix airride kit with air management for Opel Signum Typ Z-C/S

TA Technix Air Damper Kit + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in chrome
- 19 litre chrome tank
- Electronics set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
for air suspension
Opel Vectra C, - GTS, - Caravan, Type Z-C
Year of manufacture 2002 - 2008

Opel Signum, Type Z-C/S
year of construction 2003 - 2008
maximum front axle load: 1230kg
maximum rear axle load: 1165kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

If necessary, IDS can be deactivated professionally

Axle:

-

KeyType number:

16450,16451,16458,16459,16530,16743,16744,16745,16746,17169,17500,17604,17605,17646,17647,17648,17649,17650,17651,17653,17936,17937,17938,17939,17940,17941,17942,17945,18172,18242,18470,19137,19138,19139,19140,19141,19142,19143,19144,19268,19269,19280,19281,19282,19283,19284,19285,19286,19317,19987,20011,20012,20013,23276,25499,25500,54921,54922,59266,59260,59265,17068,17207,17208,17209,17210,17211,17212,17934,17946,19092,19111,19361,19986,20108,59267
