TA-Technix airride kit with air management for Audi TT Quattro (8N)

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below the minimum pressure triggers a visual warning signal and is necessary for TÜV registration)

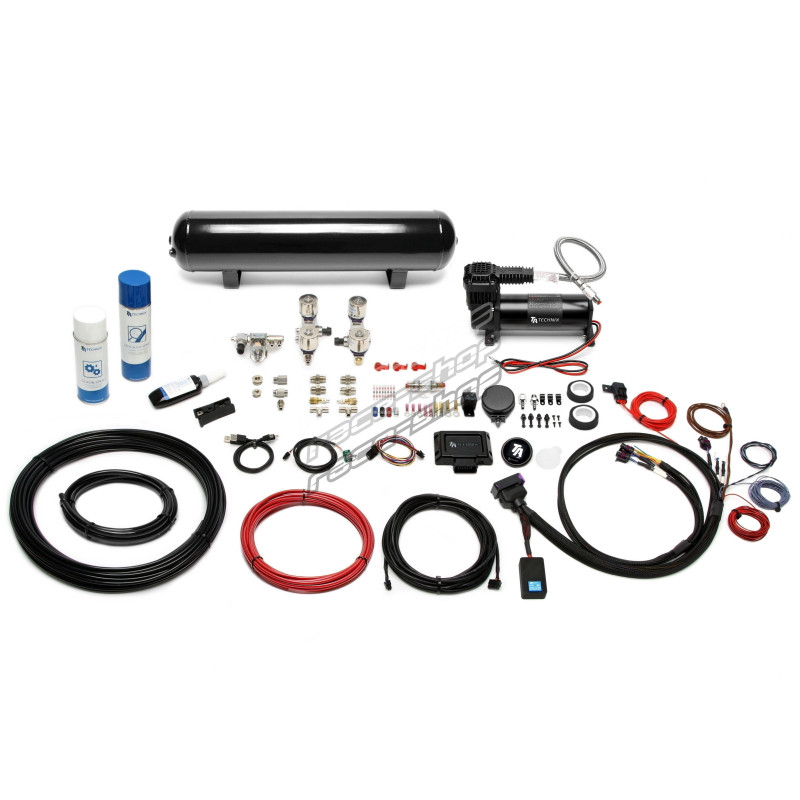

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in black
- 19 litre tank in black
- Electronic set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Audi A3/S3 Quattro, model 8L, year of manufacture 1999 - 2003
Audi TT Quattro, model 8N, year of construction 1998 - 2006
Seat Leon 4x4, model 1M, year of manufacture 2002 - 2006
Skoda Octavia I 4x4, - estate, type 1U, year of construction 2000 - 2010
Volkswagen Bora 4motion, - Variant ,Type 1J, Year of manufacture 2000- 2005
Volkswagen Golf IV 4motion, - Variant, Type 1J, Year of manufacture 2000 - 2006
maximum front axle load: 1050kg
maximum rear axle load: 1080kg

Approval:

Including parts report (§19.3)

Implementation notes:

Suspension struts with stabilizer / sway bar mount

Notes:

We recommend using shorter coupling rods, e.g. E.g. EVOPE003

Axle:

-

KeyType number:

9602,9902,9903,10465,10944,11268,11339,11343,11344,12243,12344,13099,13101,13102,13103,13105,13106,13107,14416,14560,14561,14562,14564,14565,14566,14725,14903,15294,15459,15461,15463,15465,15467,15469,15541,15547,15549,15666,15667,15724,15760,15898,15905,16064,16066,16068,16070,16086,16087,16088,16314,16350,16846,17144,17300,17472,17479,18526,18943,18946,54939,54941,59345
