TEIN Mono RACING Coilover per Toyota Yaris GR (2020+)

TEIN MONO RACING series is developed to satisfy the drivers who frequently take their cars for a spin at the race tracks. Based on the settings of the high-end model SUPER RACING and on a wealth of data gained through participation in various motorsports, spring rates and damping force for MONO RACING are determined to be most suitable for sports driving.

Camber/Caster adjustable pillow ball upper mounts

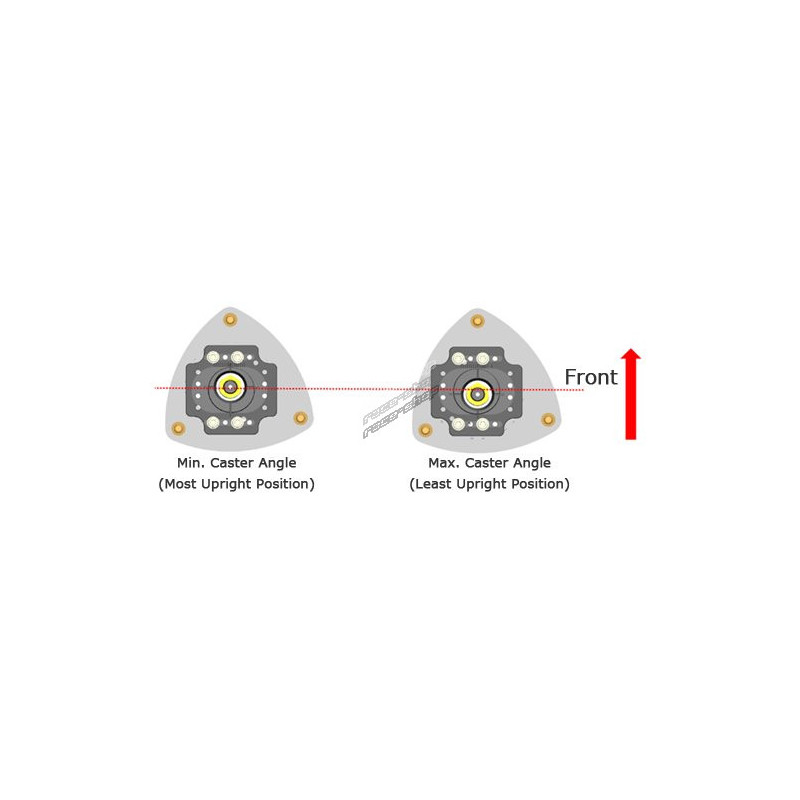

For front strut suspensions, MONO RACING includes the camber and caster angle adjustable pillow ball upper mounts evolved from SUPER RACING upper mounts. Many upper mounts provide camber adjustment feature, but MONO RACING upper mounts are also caster adjustable. Camber angle can be adjusted steplessly while caster angle adjustment is available in 4 steps and both can be adjusted individually (Except some models).

Camber adjustable lower bracket

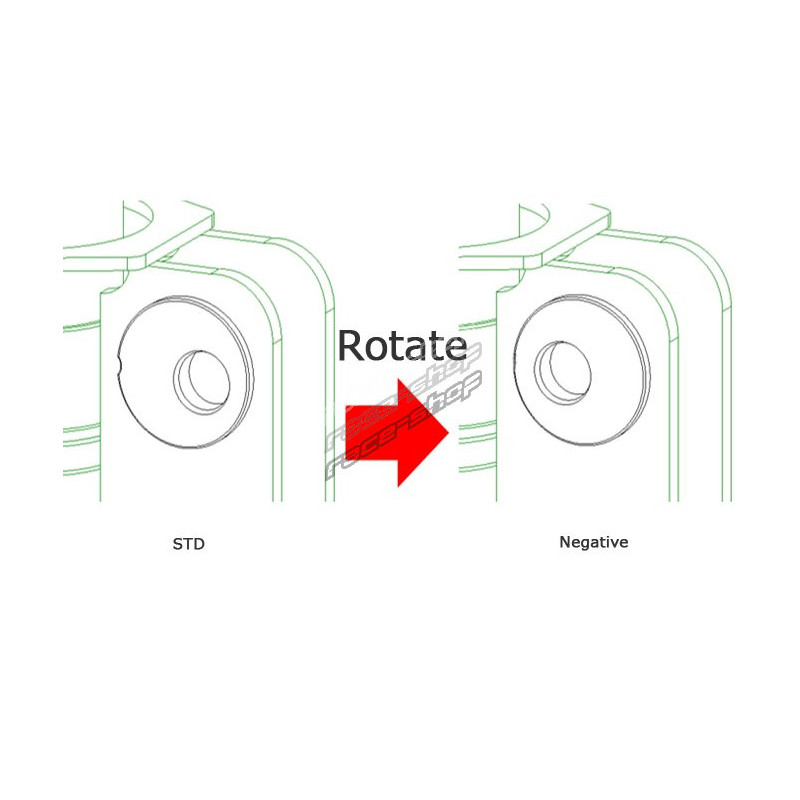

Lower brackets on strut type suspensions come with camber angle adjustment feature. Camber angle can be adjusted by rotating the eccentric collar 180°. This feature can enable camber angle adjustment, even if it can not be adjusted with the upper mounts. Both adjustments at the upper mounts, if applicable, and the lower brackets combined allows for total camber angle adjustment to meet various needs and preferences. (Except some models with "insert type bracket" struts)

MONO-Tube (Upright Strong Tube)

Mono tube structure of MONO RACING completely separates the oil chamber and the gas chamber and hence aeration does not occur. This enables stable generation of linear damping force, reacting to the finest changes in road surfaces, even when running aggressively and repeatedly on circuits. With this, superior-quality MONO RACING offers capability for the most delicate control of the vehicle and for the deepest level of communication with the roads.

For strut type suspensions, which require high lateral stiffness, highly-rigid "Upright Strong Tube" structure, the fruit of participation in professional motorsports worldwide such as WRC & WRX, is adopted.
Damping force adjustment knob attached to the top of the shock absorber allows easier access, making the repeaded adjustment within the limited time less hassle, and makes the installation of EDFC motors (optional) a breeze.
Waterproofing process, which is a must for inverted types, is reduced/simplified greatly.

Use of specially-designed urethane bump rubbers effectively reduces the bump impact, to maintain the comfortable ride even when going over bumps/gaps and to protect dampers from bottoming out. (Some models may use OE bump rubbers.)

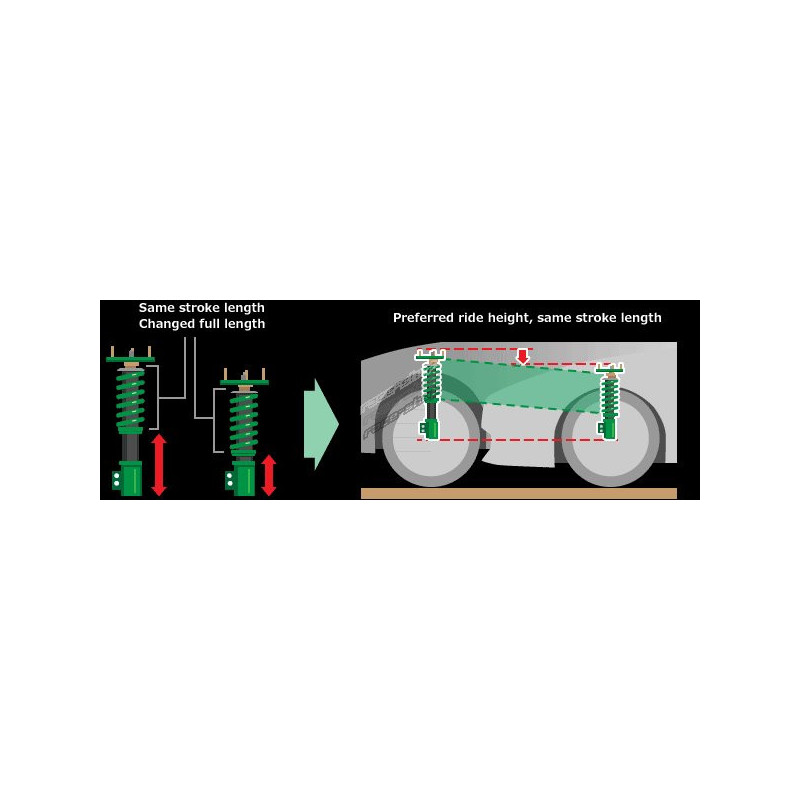

Full-length ride height adjustment

In addition to combining a low down style with ride comfort, this system offers more setup options for sport driving too.
Advantage: adjusting ride height has little effect on ride quality.

Advance M.S.V.

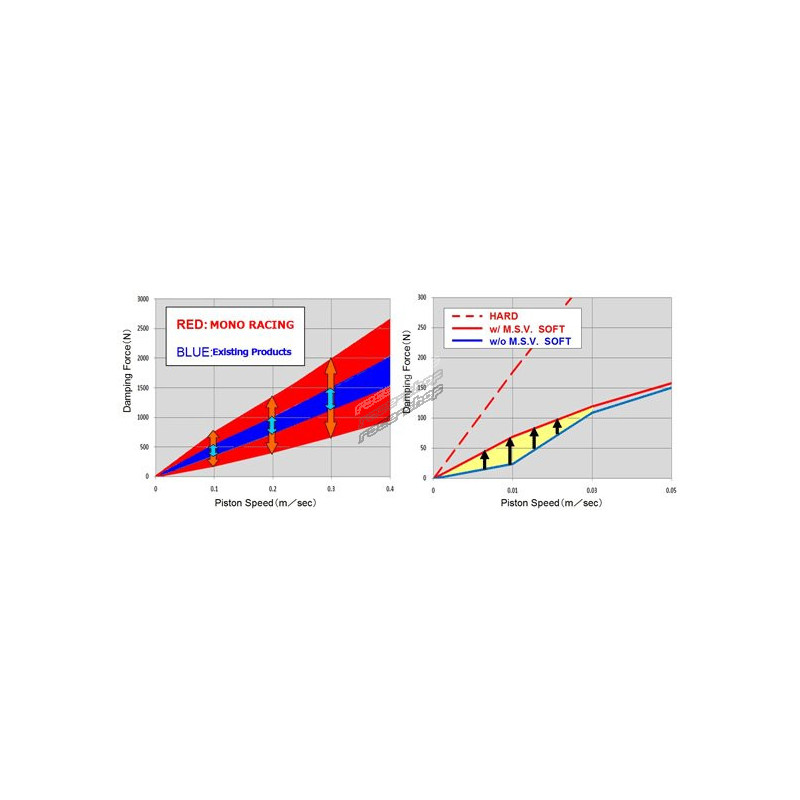

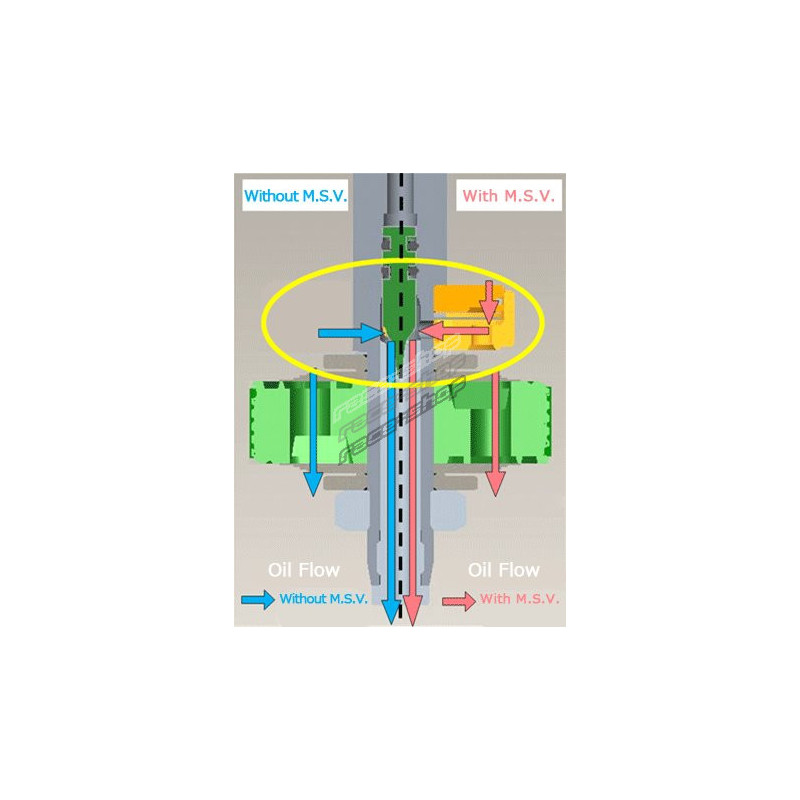

Tein MONO RACING uses "ADVANCE M.S.V." for damping force adjustment feature. "ADVANCE M.S.V." combines "M.S.V." mechanism to finely control damping force in micro speed range with "ADVANCE Needle" to widen the damping force adjustable range, for superior steering response and traction performance, fully utilizing the damping force adjustable range.

Damping force adjustment

MONO RACING features 16-level damping force adjustment, for simultaneous adjustment of compression and rebound.
Modify ride comfort and handling according to your preference, changing the properties of the shock absorber with the adjustment dial.

Compatible with:

• Toyota Yaris GR
• Year: 2020+

Specifications:

• To suit Toyota Yaris GR (2020+)
• Spring rates: 14 kgF/mm (front) and 12 kgF/mm (rear)
• 16 stage damping adjustment
• Compatible with Tein EDFC (EDK05-12120)
• Anti-corrosion ZT coating and dust boots
• No-sag spring (SAE9254 steel - cold formed)
• High-performance stable viscosity damper oil
• Tein reference : VSTN0-K1NS4
